Endura Narrow V-Belts — Section SPZ, SPA, SPB, SPC High-Performance Drive Belts — Endura Hi-Tech pneumatic product available at Shri Narayan Machinery LLP Noida
Endura Hi-Tech

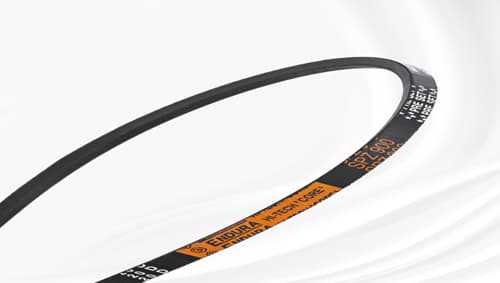

Endura Narrow V-Belts — Section SPZ, SPA, SPB, SPC High-Performance Drive Belts

Endura Hi-Tech narrow V-belts deliver significantly higher power transmission capacity in a compact cross-section, making them the preferred choice for modern industrial drives where space, efficiency, and performance matter. Available in four metric sections — SPZ (10x8mm), SPA (13x10mm), SPB (17x14mm), and SPC (22x18mm) — these narrow profile belts transmit up to 1.5 times more power than equivalent classical belts at higher speeds. The optimised wedge angle and deeper seating in narrow-profile pulleys eliminate belt rollover and improve tracking stability. Endura narrow V-belts use high-modulus polyester cords and a specially formulated EPDM rubber compound for extended service life in high-temperature and chemically aggressive environments. Conforming to IS 3142, ISO 4184, and DIN 7753 standards, they are engineered for OEM machine builders and replacement applications alike. Shri Narayan Machinery LLP in Noida supplies the full SPZ/SPA/SPB/SPC range with expert drive design support.

Request QuoteCall +91-9811104037
Cross-Sections Available: SPZ, SPA, SPB, SPCSection SPZ Dimensions: 10mm top width x 8mm heightSection SPA Dimensions: 13mm top width x 10mm heightSection SPB Dimensions: 17mm top width x 14mm height

Key Features

Four metric sections: SPZ (10x8mm), SPA (13x10mm), SPB (17x14mm), SPC (22x18mm)
Transmits up to 1.5x more power than classical belts in the same drive space
High-modulus polyester cord for minimal stretch and consistent tension over belt life
EPDM rubber compound with superior resistance to heat, ozone, and chemical exposure
Deeper wedge angle provides better grip and eliminates belt rollover at high speeds
Suitable for high-speed drives up to 40 m/s (SPZ section)
Conforms to IS 3142, ISO 4184, and DIN 7753 standards
Anti-static construction meeting ISO 1813 requirements for safe operation

Technical Specifications

Cross-Sections AvailableSPZ, SPA, SPB, SPC
Section SPZ Dimensions10mm top width x 8mm height
Section SPA Dimensions13mm top width x 10mm height
Section SPB Dimensions17mm top width x 14mm height
Section SPC Dimensions22mm top width x 18mm height
Inside Length RangeSPZ: 630–6000mm, SPA: 800–5000mm, SPB: 1250–8000mm, SPC: 2000–12500mm
Power CapacityUp to 1.5x more than equivalent classical section
Maximum SpeedUp to 40 m/s (SPZ), 35 m/s (SPA/SPB), 30 m/s (SPC)
Temperature Range-30 degree C to +80 degree C (EPDM compound)
MaterialEPDM rubber compound, high-modulus polyester cord
StandardsIS 3142, ISO 4184, DIN 7753
Anti-StaticYes, compliant with ISO 1813

Applications

The Narrow V-Belts is used across a wide range of industrial applications:

  • CNC machines, VMC spindles, and precision machine tool drives
  • Industrial air compressors (screw and reciprocating types)
  • Centrifugal pumps, submersible pump surface drives, and booster pumps
  • Industrial blowers, fans, and dust collection systems
  • Textile spinning machines, looms, and winding equipment
  • Packaging machines, conveyors, and bottling line drives
  • Printing press roller drives and paper converting equipment
  • HVAC chillers, cooling towers, and air handling unit fans

Industries Served

Manufacturing & Precision EngineeringTextile & Garment IndustryPrinting & PackagingHVAC & RefrigerationPharmaceuticals & ChemicalsFood & Beverage Processing

Need Narrow V-Belts? Get the Best Dealer Price

As your Endura Hi-Tech dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire Narrow V-Belts range. Contact us for availability and your best quote.

Request Quote on WhatsAppCall +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | Endura Hi-Tech Dealer

Frequently Asked Questions — Narrow V-Belts

Narrow V-belts have a deeper wedge profile that seats more firmly in the pulley groove, transmitting up to 50% more power than classical belts of equivalent top width. This means you can use fewer belts, smaller pulleys, and more compact drive assemblies — reducing cost, weight, and maintenance. Narrow belts also run at higher speeds (up to 40 m/s) with less vibration. For new machine designs and drive upgrades in Indian factories, narrow V-belts are the modern standard recommended by Shri Narayan Machinery LLP.
