What does distance-to-spot ratio mean on Fluke IR thermometers?

Distance-to-spot ratio (D:S) tells you how large an area the thermometer measures at a given distance. An 8:1 ratio means at 80cm distance, the measurement spot is about 10cm in diameter. A 10:1 ratio gives a tighter spot at the same distance. Higher D:S ratios are better for measuring small targets or measuring from farther away — important for electrical panels where you need to isolate individual components.

Can I use a Fluke IR thermometer for food safety applications?

Yes, Fluke IR thermometers are widely used in food processing and cold storage for non-contact temperature verification. The Fluke 59 MAX is a cost-effective choice for checking food surface temperatures, cold room monitoring, and HACCP compliance. Note that IR thermometers measure surface temperature only — for internal food temperature, you still need a probe thermometer.

Fluke

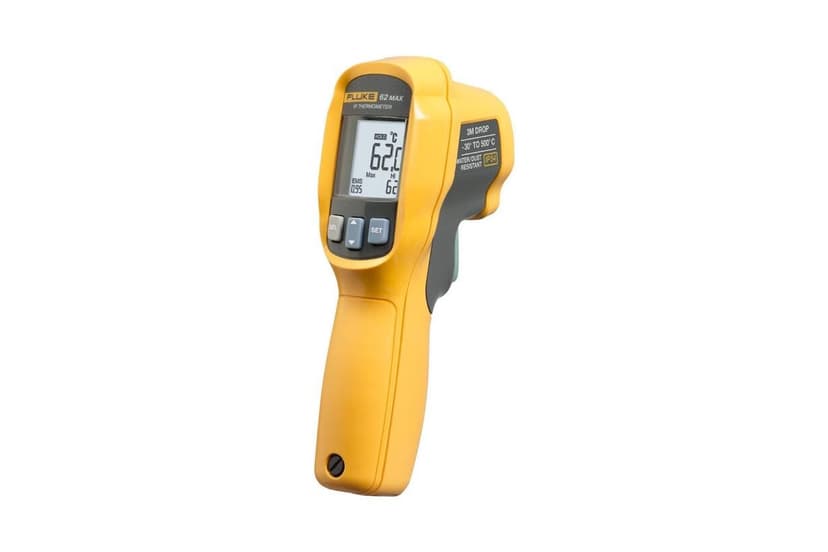

Fluke Infrared Thermometers — Non-Contact Temperature Guns (Fluke 59 MAX, 62 MAX+)

Name: Fluke Infrared Thermometers — Non-Contact Temperature Guns (Fluke 59 MAX, 62 MAX+)
Brand: Shri Narayan Machinery LLP

Fluke infrared thermometers provide instant, non-contact temperature measurement for industrial maintenance, HVAC diagnostics, and electrical troubleshooting. The Fluke 59 MAX covers -30°C to 350°C with a distance-to-spot ratio of 8:1, perfect for checking motor bearings, electrical connections, and HVAC components at close range. The Fluke 59 MAX+ extends to 500°C with 10:1 D:S ratio for measuring targets at greater distances. The Fluke 62 MAX offers -30°C to 500°C with 10:1 D:S ratio and a rugged IP54 dust and water-resistant housing backed by a 3-year warranty — ideal for harsh factory and outdoor environments. All models feature laser targeting, backlit displays, and single-trigger operation for fast readings. Shri Narayan Machinery LLP in Noida carries the complete Fluke IR thermometer range — request a quote for your temperature measurement needs.

Request Quote Call +91-9811104037

Models Available: Fluke 59 MAX, Fluke 59 MAX+, Fluke 62 MAXTemperature Range (59 MAX): -30°C to 350°C (-22°F to 662°F)Temperature Range (59 MAX+ / 62 MAX): -30°C to 500°C (-22°F to 932°F)Distance-to-Spot Ratio (59 MAX): 8:1

Key Features

Non-contact infrared temperature measurement with single-trigger operation

Fluke 59 MAX: -30°C to 350°C range, 8:1 distance-to-spot ratio for close-range work

Fluke 59 MAX+: -30°C to 500°C range, 10:1 D:S ratio for medium-distance targets

Fluke 62 MAX: -30°C to 500°C, 10:1 D:S, IP54 rated, 3-year warranty for tough environments

Single-point laser targeting for precise aiming at hotspots

Backlit LCD display for easy reading in dark panels and machine rooms

Lightweight ergonomic pistol-grip design for extended use

Fast 500ms response time for quick scanning of multiple points

Technical Specifications

Models Available	Fluke 59 MAX, Fluke 59 MAX+, Fluke 62 MAX
Temperature Range (59 MAX)	-30°C to 350°C (-22°F to 662°F)
Temperature Range (59 MAX+ / 62 MAX)	-30°C to 500°C (-22°F to 932°F)
Distance-to-Spot Ratio (59 MAX)	8:1
Distance-to-Spot Ratio (59 MAX+ / 62 MAX)	10:1
Accuracy	±1.5% of reading or ±1.5°C, whichever is greater
Response Time	500 ms (95% of reading)
Emissivity	Fixed (0.95 default)
Laser Type	Single-point laser
Ingress Protection (62 MAX)	IP54 — dust and water splash resistant
Warranty (59 MAX / 59 MAX+)	1 year manufacturer warranty
Warranty (62 MAX)	3 year manufacturer warranty

Applications

The Infrared Thermometers is used across a wide range of industrial applications:

Detecting hot spots on electrical connections, bus bars, and circuit breakers
Monitoring motor bearing temperatures during predictive maintenance rounds
HVAC supply and return air temperature verification
Checking steam trap and heat exchanger performance
Verifying refractory lining temperature in furnaces and kilns
Food processing temperature compliance and cold chain verification
Automotive engine and brake system temperature diagnostics
Checking conveyor belt roller temperatures in manufacturing lines

Industries Served

Manufacturing and process industriesHVAC and building servicesElectrical maintenance and contractingFood processing and cold storageAutomotive service and repair

Need Infrared Thermometers? Get the Best Dealer Price

As your Fluke dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire Infrared Thermometers range. Contact us for availability and your best quote.

Request Quote on WhatsApp Call +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | Fluke Dealer

Frequently Asked Questions — Infrared Thermometers

For electrical maintenance, the Fluke 62 MAX is the top recommendation. Its -30°C to 500°C range covers everything from checking cold solder joints to detecting overheating bus bars. The 10:1 distance-to-spot ratio lets you measure from a safe distance, and the IP54 dust/water-resistant housing withstands tough industrial environments. It also carries a 3-year warranty — the longest in the range.
