Can I use Insize depth gauges near CNC coolant?

Yes, the Insize 1149 series is IP67 waterproof and designed for use in coolant-heavy environments including CNC machining centres and grinding machines. Standard models (1141 series) should be kept away from direct coolant contact. Both are available at Shri Narayan Machinery LLP, Noida.

Which Insize depth gauge is most popular in Indian machine shops?

The Insize 1141-150A (0-150mm digital depth gauge) is the most widely used model across Indian manufacturing. For budget-conscious shops, the 1240-2001 vernier depth gauge (0-150mm, 0.02mm graduation) offers excellent value without needing batteries. Both are stocked at our Noida location.

Insize

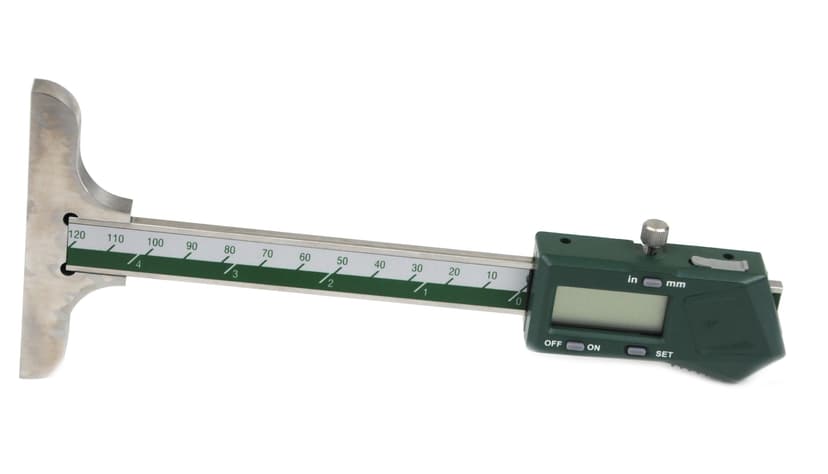

Insize Digital Depth Gauges & Depth Micrometers

Name: Insize Digital Depth Gauges & Depth Micrometers
Brand: Shri Narayan Machinery LLP

Insize depth gauges and depth micrometers enable accurate measurement of step heights, slot depths, hole depths, and recesses across Indian manufacturing operations. Available from Shri Narayan Machinery LLP in Noida, the range includes standard digital depth gauges (1141 series) with 0.01mm resolution and interchangeable measuring rods for extended range, IP67 waterproof digital depth gauges (1149 series) for use near grinding coolant and wash stations, dial depth gauges (1340, 2342 series) for mechanical reliability, vernier depth gauges (1240 series) for battery-free measurement, and precision depth micrometers (3240, 3540 series) delivering 0.01mm to 0.001mm resolution for critical depth tolerances. Hook depth gauge variants (1142, 1245 series) measure from internal shoulders and blind features. Extension bases (6141 series) widen the bearing surface for stable measurements on large workpieces. From checking keyway depths on shafts to verifying counterbore depths in engine blocks, Insize depth gauges cover every depth measurement application. Contact our Noida showroom for a quote.

Request Quote Call +91-9811104037

Popular Models: 1141-150A, 1141-200A, 1141-300A, 1149-150, 3240-25, 3240-100, 3540-50, 1240-2001Measurement Range (Digital): 0-150mm, 0-200mm, 0-300mm, 0-500mm; up to 0-1000mm with extension rodsMeasurement Range (Depth Micrometer): 0-25mm, 0-100mm, 0-150mm, 0-300mm with interchangeable rodsResolution (Digital): 0.01mm / 0.0005"

Key Features

Digital depth gauges (1141 series) with 0.01mm / 0.0005" resolution and interchangeable rods up to 1000mm

IP67 waterproof models (1149 series) — safe to use near CNC coolant, grinding fluid, and wash-down areas

Depth micrometers (3240, 3540 series) with 0.01mm and 0.001mm resolution for precision depth measurement

Hook depth gauges (1142, 1245 series) for measuring from internal shoulders and blind hole features

Vernier depth gauges (1240 series) with 0.02mm graduation — no battery needed

Dial depth gauges (1340 series) with 0.02mm graduation for quick visual reading

Extension base (6141 series) available in 260mm and 320mm for stable measurement on large surfaces

Hardened stainless steel base and measuring rod with fine-lapped contact surfaces

Technical Specifications

Popular Models	1141-150A, 1141-200A, 1141-300A, 1149-150, 3240-25, 3240-100, 3540-50, 1240-2001
Measurement Range (Digital)	0-150mm, 0-200mm, 0-300mm, 0-500mm; up to 0-1000mm with extension rods
Measurement Range (Depth Micrometer)	0-25mm, 0-100mm, 0-150mm, 0-300mm with interchangeable rods
Resolution (Digital)	0.01mm / 0.0005"
Resolution (Depth Micrometer)	0.01mm (3240 series); 0.001mm (3540 series)
Graduation (Vernier)	0.02mm (1240 series); 0.1mm (mini 1244 series)
Accuracy	±0.02mm (0-150mm digital); ±0.004mm (depth micrometer 0-25mm)
IP Rating	IP67 (1149 series); standard on other models
Base Width	101.5mm standard; 260mm and 320mm extension bases available
Battery	CR2032 lithium — 3+ years with auto-off (digital models)
Measuring Rod Material	Hardened stainless steel
Data Output	Digimatic-compatible on digital models (1141, 1149 series)

Applications

The Depth Gauges is used across a wide range of industrial applications:

Measuring keyway depth, slot depth, and groove depth on machined shafts and housings
Verifying counterbore and countersink depths in engine blocks, cylinder heads, and gear boxes
Step height measurement between machined surfaces on milled components
Blind hole depth measurement in die and mould making
Checking depth of drilled holes in precision machined plates and flanges
Shoulder depth measurement on turned components and bearing housings
Quality inspection of stamped and pressed component step heights
Measuring depth of wear on brake discs, valve seats, and other maintenance items

Industries Served

Automotive engine and transmission manufacturingDie and mould makingCNC machining and job shopsHeavy engineering and fabricationMaintenance and repair operations (MRO)Aerospace component manufacturing

Need Depth Gauges? Get the Best Dealer Price

As your Insize dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire Depth Gauges range. Contact us for availability and your best quote.

Request Quote on WhatsApp Call +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | Insize Dealer

Frequently Asked Questions — Depth Gauges

A depth gauge (1141 series) uses a sliding scale similar to a caliper — it has wider range (up to 1000mm with rods) and is faster for routine measurements. A depth micrometer (3240, 3540 series) uses a thimble mechanism like a micrometer — it offers higher accuracy (±0.004mm vs ±0.02mm) and is preferred for precision depth measurements in quality labs. Choose based on your accuracy requirement and measurement range.
