Do I need a granite surface plate to use an Insize height gauge?

Yes, a height gauge must be used on a flat reference surface — a Grade A or Grade B granite surface plate is standard in Indian quality labs. The height gauge base sits on the surface plate, and all measurements are taken relative to that datum. Shri Narayan Machinery LLP can supply both height gauges and granite surface plates for your inspection setup.

Can Insize height gauges connect to a computer for data logging?

Yes, the Insize 1150, 1151, and 1156 digital height gauge series have a data output port compatible with Insize data cables (7302 series) and wireless transmitters (7315 series). This allows direct SPC data transfer to Excel or Insize measurement software (Code 7349) for quality documentation and trend analysis.

What is the largest height gauge Insize offers?

The Insize 1150-1000 digital height gauge measures up to 1000mm (40 inches). For even larger requirements, the 1251 vernier height gauge series goes up to 2000mm (80 inches), which is suitable for measuring large fabricated assemblies, machine frames, and structural components.

Insize

Insize Digital Height Gauges — Column Type for Quality Inspection

Name: Insize Digital Height Gauges — Column Type for Quality Inspection
Brand: Shri Narayan Machinery LLP

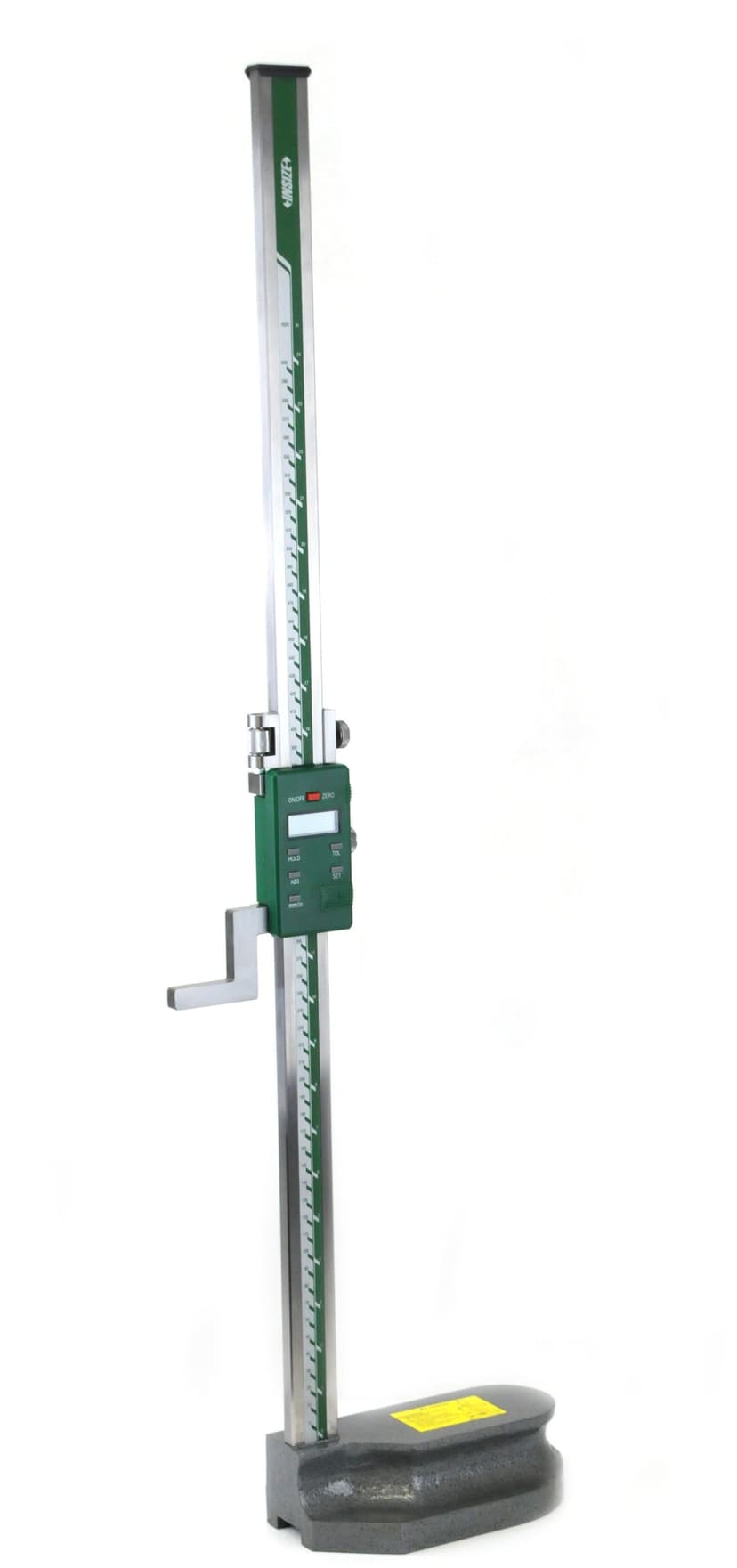

Insize digital height gauges are essential surface plate instruments for quality inspection departments in Indian manufacturing. Available from Shri Narayan Machinery LLP in Noida, the range includes standard digital height gauges (1150 series) with 0.01mm resolution in 300mm to 1000mm ranges, height gauges with driving wheel (1156 series) for smooth single-hand operation favoured in production inspection, high-precision models (1155 series) with 0.5 micron resolution for metrology laboratories, mini digital height gauges (1154 series) for compact setups, dial height gauges (1351 series) for mechanical reliability, and vernier height gauges (1251 series) offering battery-free operation up to 2000mm range. The column-type design ensures rigidity and perpendicularity, while the hardened stainless steel scriber enables marking and scribing operations directly on the surface plate. With carbide-tipped scribers and fine adjustment wheels, Insize height gauges meet the demands of ISO-certified quality labs across India. Request a quote from Shri Narayan Machinery LLP, Sector 9, Noida.

Request Quote Call +91-9811104037

Popular Models: 1150-300, 1150-500, 1150-600, 1156-300, 1156-600, 1151-300A, 1154-150, 1251-200Measurement Range: 0-150mm (mini), 0-300mm, 0-500mm, 0-600mm, 0-1000mm (digital); up to 0-2000mm (vernier)Resolution (Standard Digital): 0.01mm / 0.0005"Resolution (High Precision): 0.5 micron / 0.00002" (1155-505); 0.1 micron / 0.000005" (1155-510)

Key Features

Column-type design with hardened stainless steel beam for rigidity and perpendicularity

Resolution: 0.01mm / 0.0005" (standard digital); 0.5 micron / 0.1 micron on high-precision 1155 series

Driving wheel models (1156 series) enable smooth, single-hand slider movement for fast inspection

Ranges from 0-150mm (mini) through 0-300mm, 0-500mm, 0-600mm, up to 0-1000mm

Vernier height gauges (1251 series) available up to 2000mm for measuring large fabricated assemblies

Carbide-tipped scriber included for marking and scribing operations on the surface plate

Fine adjustment wheel for precise positioning when measuring step heights and features

Data output for SPC integration — direct connection to quality management software

Technical Specifications

Popular Models	1150-300, 1150-500, 1150-600, 1156-300, 1156-600, 1151-300A, 1154-150, 1251-200
Measurement Range	0-150mm (mini), 0-300mm, 0-500mm, 0-600mm, 0-1000mm (digital); up to 0-2000mm (vernier)
Resolution (Standard Digital)	0.01mm / 0.0005"
Resolution (High Precision)	0.5 micron / 0.00002" (1155-505); 0.1 micron / 0.000005" (1155-510)
Accuracy (Standard)	±0.03mm (0-300mm), ±0.04mm (0-500mm), ±0.05mm (0-600mm)
Column Material	Hardened stainless steel beam on cast iron / granite base
Scriber	Carbide-tipped, replaceable
Battery	CR2032 lithium (standard digital); rechargeable on high-precision models
Data Output	Digimatic-compatible on 1150, 1151, 1156 series
Base Material	Cast base with fine-ground bottom for stable seating on surface plate
Operating Temperature	10°C to 30°C (high-precision); 0°C to 40°C (standard)
Weight	Approximately 2.5kg (300mm model); 6kg (600mm model)

Applications

The Height Gauges is used across a wide range of industrial applications:

Surface plate inspection — measuring component heights, step heights, and datum-referenced features
Scribing layout lines on workpieces for machining, drilling, and fabrication
Checking parallelism and squareness of machined surfaces against a granite surface plate
First-article inspection of CNC machined components in quality control departments
Measuring centre distances, bolt hole positions, and feature heights on housings and castings
Verifying flatness by comparing heights at multiple points across a machined surface
Production inspection of batch components for height and position tolerance compliance
Metrology lab reference measurement for calibration of gauges and fixtures (high-precision models)

Industries Served

Automotive OEM quality inspection departmentsAerospace and defence manufacturingTool and die makingCalibration and metrology laboratoriesHeavy engineering — measuring large fabricated componentsPrecision machining and CNC job shops

Need Height Gauges? Get the Best Dealer Price

As your Insize dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire Height Gauges range. Contact us for availability and your best quote.

Request Quote on WhatsApp Call +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | Insize Dealer

Frequently Asked Questions — Height Gauges

For most Indian quality labs, the Insize 1150-300 (0-300mm) or 1150-600 (0-600mm) digital height gauge offers the best balance of accuracy, features, and value. If your inspectors need smooth single-hand operation for high-volume inspection, the 1156 series with driving wheel is the premium choice. For NABL-accredited calibration labs, the 1155 series high-precision models (0.5 micron resolution) are recommended. All models available from Shri Narayan Machinery LLP, Noida.

Need This Product? Get a Quote Now.

Call or WhatsApp us with the model number — we'll check availability and give you the best price. Bulk orders welcome.

Call +91-9811104037 WhatsApp Us
