Insize Outside Micrometers: Digital, Analog, Disc & Blade Types

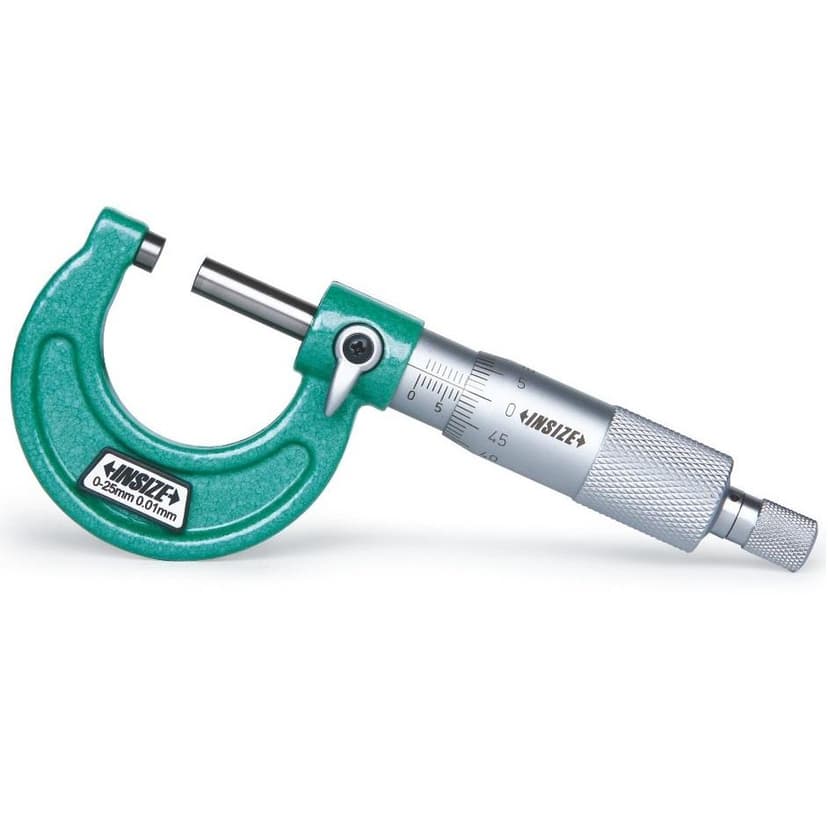

When a caliper's accuracy isn't enough, Insize outside micrometers take you to 0.001mm resolution on the digital 3109 and IP65-rated 3101 series, with ±0.002mm accuracy on the 0-25mm size. The analog 3203 series with 0.01mm graduation stays the shopfloor staple, while 3105 quick-feeding models speed up production sampling. Disc micrometers (3282 series) handle gear tooth thickness and thin walls, and blade micrometers (3232 series) get into keyways and narrow grooves. Units measure in 25mm bands, with sets to 0-150mm and interchangeable anvil models extending coverage to 500mm; the ratchet stop keeps measuring force at a consistent 5-10N across operators. Bearing, gear, and automotive component plants around Noida rely on them for micron-level checks. Stocked at Sector 9, Noida; WhatsApp for price.
Available — pickup today from Sector 9, Noida
Same-day Delhi NCR dispatch · call to confirm stock on your exact model
Key Features
Technical Specifications
| Popular Models | 3203-25A, 3203-50A, 3109-25A, 3109-50A, 3101-25A, 3282-25, 3232-25A, 3105-25 |
| Measurement Range | 0-25mm per unit; sets available up to 0-150mm; interchangeable anvils to 500mm |
| Resolution (Digital) | 0.001mm / 0.00005" |
| Graduation (Analog) | 0.01mm / 0.001" |
| Accuracy | ±0.002mm (0-25mm digital); ±0.004mm (0-25mm analog) |
| Repeatability | 0.001mm (digital models) |
| Measuring Force | 5-10N via ratchet stop / friction thimble |
| Measuring Faces | Carbide tipped (premium models); hardened steel (standard) |
| Frame Material | Painted steel frame with heat-insulating grip |
| Spindle Lock | Clamp ring for locking spindle at measured position |
| Battery (Digital) | SR44 silver oxide, approximately 1.5 years with auto-off |
| Data Output | Digimatic-compatible on 3101, 3109 series (with data output models) |
Applications
The Outside Micrometers is used across a wide range of industrial applications:
- Precision measurement of shaft diameters, pins, and cylindrical ground components
- Quality lab final inspection of turned parts with micron-level tolerance requirements
- Gear tooth thickness measurement using disc micrometers (3282 series)
- Narrow groove, keyway, and slot width measurement with blade micrometers (3232 series)
- Sheet metal and foil thickness measurement in stamping and press shop QC
- Thread pitch diameter verification with screw thread micrometers (3281 series)
- Production floor sampling inspection with quick-feeding digital models
- Calibration lab reference measurement traceable to gauge block standards
Industries Served
Need Outside Micrometers? Get the Best Dealer Price
As your Insize dealer, Shri Narayan Machinery LLP offers competitive pricing on the full Outside Micrometers range. Call us for availability and your best quote.
C-101, Sector 9, Noida, Uttar Pradesh 201301 | Insize Dealer
