What is the advantage of carbide tipped vernier calipers (Insize 1238 series)?

Carbide tipped jaws last 5-10 times longer than standard hardened steel when measuring abrasive materials like cast iron, sintered metal, graphite, and hardened steel above 50 HRC. If your shop routinely measures castings or hardened workpieces, the 1238 series holds its accuracy far longer than standard jaws.

How do I read 0.02mm graduation on an Insize vernier caliper?

The main scale reads in 1mm increments. The vernier scale has 50 divisions spanning 49mm, giving a least count of 0.02mm. Align the zero of the vernier scale against the main scale to read the mm value, then find the vernier division that best aligns with a main scale line to get the 0.02mm fraction. Detailed reading guides are available from our Noida team.

Insize

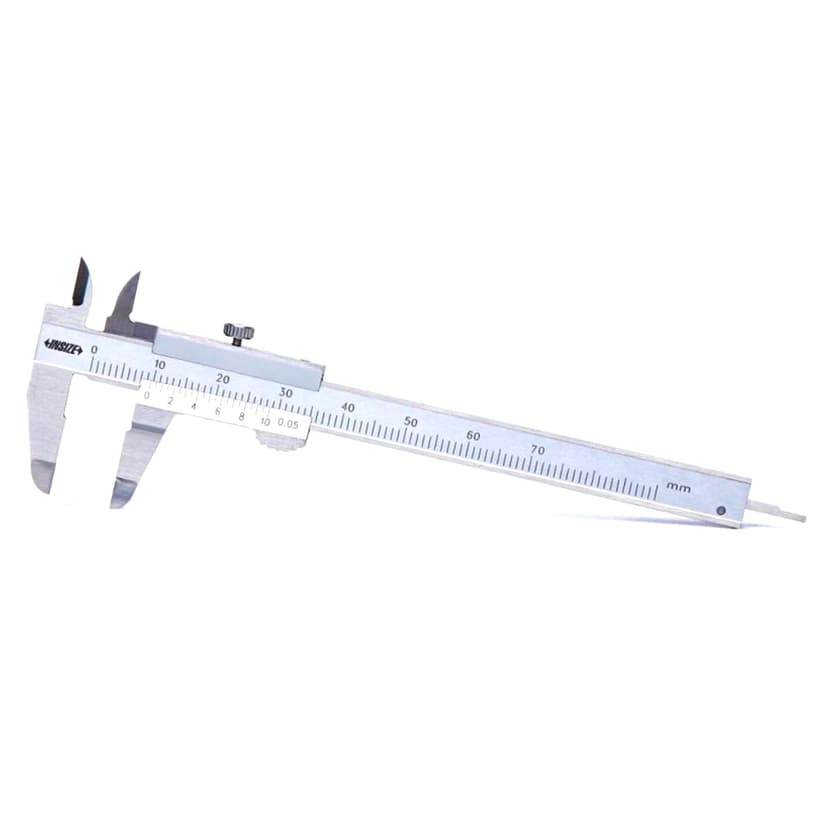

Insize Vernier Calipers: Standard, Ceramic Tipped, Heavy Duty & Mini

Name: Insize Vernier Calipers: Standard, Ceramic Tipped, Heavy Duty & Mini
Brand: Insize

No battery, no electronics: Insize vernier calipers give you 0.02mm graduation on the standard 1205 series and keep reading through dust, coolant, and rough handling. The range runs from compact mini models (1201, 1203 series) for confined spaces up to 0-2000mm heavy-duty solid types (1208, 1236 series) for large fabrications. The 1238 series adds carbide tipped jaws for abrasive cast iron and hardened steel, and the 1233 series has a fine adjustment screw for critical measurements. Construction is hardened stainless steel with a satin chrome, laser-etched scale to DIN 862, plus a knurled locking screw on every model. Fabricators, foundries, ITI training centres, and field service technicians across Noida-NCR keep these as their everyday and backup measuring tools. Stocked at Sector 9, Noida; WhatsApp for price.

Request Quote Call +91-9811104037

Available — pickup today from Sector 9, Noida

Same-day Delhi NCR dispatch · call to confirm stock on your exact model

Popular Models: 1205-1502S, 1205-2002S, 1205-3002S, 1238-1502, 1208-394, 1201-1003, 1233-130Measurement Range: 0-70mm (mini) to 0-2000mm (heavy duty solid type)Graduation: 0.02mm / 0.001" (standard); 0.05mm / 1/128" (solid type)Accuracy: ±0.03mm (0-150mm), ±0.05mm (0-200mm), ±0.07mm (0-300mm); varies by range for solid type

Key Features

Graduation: 0.02mm / 0.001" (standard models); 0.05mm on economy and solid types

Carbide tipped jaws (1238 series) resist wear when measuring abrasive cast iron, hardened steel, and ceramics

Heavy-duty solid type (1208, 1236 series) available up to 2000mm range for large fabrications

Fine adjustment thumb screw (1233 series) for precise positioning on critical measurements

Mini vernier calipers (1201, 1203 series) measure in confined spaces, 75mm and 100mm range

Anti-magnetic model (1224-150A) for use near electromagnetic equipment and MRI facilities

Hardened stainless steel construction with satin chrome finish for corrosion resistance

Locking screw holds the slider firmly for transfer measurements

Technical Specifications

Popular Models	1205-1502S, 1205-2002S, 1205-3002S, 1238-1502, 1208-394, 1201-1003, 1233-130
Measurement Range	0-70mm (mini) to 0-2000mm (heavy duty solid type)
Graduation	0.02mm / 0.001" (standard); 0.05mm / 1/128" (solid type)
Accuracy	±0.03mm (0-150mm), ±0.05mm (0-200mm), ±0.07mm (0-300mm); varies by range for solid type
Jaw Material	Hardened stainless steel; carbide tipped option on 1238 series
Scale Finish	Satin chrome with laser-etched markings for clarity and durability
Depth Rod	Flat type standard; round depth bar on 1202 series
Locking	Knurled locking screw on all models
Operating Temperature	5°C to 40°C (avoid direct sunlight for accurate readings)
Weight	Approximately 150g (150mm model); up to 6kg for 2000mm solid type
Standard Compliance	DIN 862
Storage	Supplied in fitted plastic case with foam lining

Applications

The Vernier Calipers is used across a wide range of industrial applications:

General-purpose dimensional measurement in machine shops and tool rooms
Field service measurement where battery-powered instruments are impractical
Measuring abrasive materials: cast iron castings, sintered parts, hardened dies (carbide tipped models)
Large workpiece measurement: fabricated frames, shafts, platens up to 2000mm (solid type)
Confined-space measurement in watch repair, electronics assembly, and jewellery (mini models)
Educational and training workshops for metrology courses and ITI practical exams
Incoming inspection of bar stock, round billets, and plate thickness
Cross-checking digital caliper readings as a backup verification tool

Industries Served

General engineering and fabricationFoundries and casting shopsHeavy engineering (steel plants, shipbuilding, power equipment)Automotive workshops and service centresEducational institutions and ITI training centresJewellery manufacturing and watchmaking

Need Vernier Calipers? Get the Best Dealer Price

As your Insize dealer, Shri Narayan Machinery LLP offers competitive pricing on the full Vernier Calipers range. Call us for availability and your best quote.

Request Quote on WhatsApp Call +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | Insize Dealer

Frequently Asked Questions: Vernier Calipers

Vernier calipers need no battery, are unaffected by coolant or dust on electronics, and are extremely durable in harsh workshop environments. They're also preferred in ITI and polytechnic training because students learn to read the vernier scale manually. Many experienced machinists in India still trust vernier calipers for their simplicity and reliability. Shri Narayan Machinery LLP stocks the full Insize vernier caliper range in Noida.
