Can SKF angular contact bearings handle axial loads in both directions?

A single angular contact bearing can only handle axial loads in one direction. To handle axial loads in both directions, you must use matched pairs arranged back-to-back (DB) or face-to-face (DF). SKF provides universal matching (BECBP/BECBM) so any two bearings of the same designation can be paired without shimming or custom selection.

What is the lead time for SKF angular contact bearings in Noida?

Standard sizes in the 7200 and 7300 series are available from stock at Shri Narayan Machinery LLP in Noida. Super-precision grades (P4, P4A) and matched sets may require 3-7 business days depending on the configuration. Contact us with your designation and quantity for exact availability and pricing.

SKF

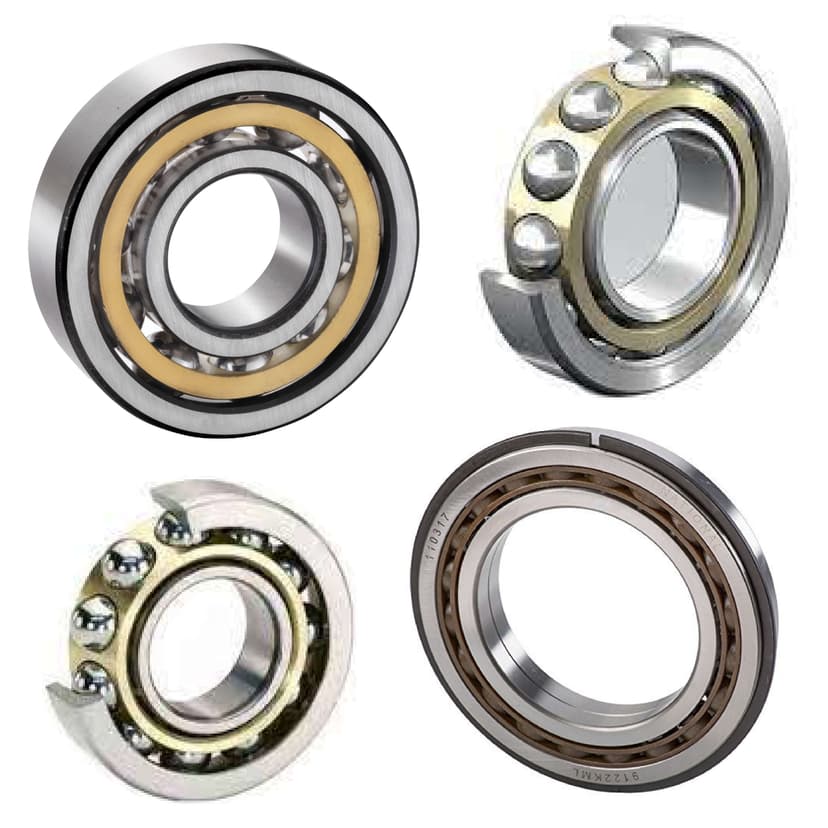

Angular Contact Ball Bearings — SKF 7200/7300 Series

Name: Angular Contact Ball Bearings — SKF 7200/7300 Series
Brand: Shri Narayan Machinery LLP

SKF Angular Contact Ball Bearings (ACBB) in the 7200 and 7300 series are precision-engineered for applications requiring combined radial and axial load support at high speeds. With contact angles of 15°, 25°, or 40°, these bearings can be optimized for speed, axial stiffness, or load capacity depending on your application. SKF's super-precision variants (7200 BECBP and 7300 BECBM) are the industry standard for CNC machine tool spindles, delivering sub-micron accuracy and minimal thermal displacement. They can be arranged in back-to-back (DB), face-to-face (DF), or tandem (DT) configurations for increased rigidity and bi-directional axial load handling. SKF angular contact bearings are manufactured to ABEC-7 and ABEC-9 precision tolerances. Shri Narayan Machinery LLP is your local source for SKF angular contact bearings in Noida and the Delhi NCR region. Contact us for technical selection assistance and competitive pricing.

Request Quote Call +91-9811104037

Type: Single Row Angular ContactSeries Available: 7200, 7300Contact Angles: 15° (C), 25° (AC), 40° (B)Bore Size Range: 10mm to 110mm

Key Features

Contact angles of 15°, 25°, and 40° for speed, stiffness, or load optimization

Matched sets available in back-to-back (DB), face-to-face (DF), and tandem (DT) arrangements

Super-precision grades (P4, P4A) for CNC spindle and high-accuracy applications

SKF Explorer performance class with optimized raceway geometry for extended life

Polyamide or machined brass cages for high-speed, low-vibration operation

Universal matching (BECBP/BECBM) eliminates the need for selective pairing

Operating speeds up to 30,000+ RPM in grease-lubricated super-precision variants

Integral sealing options available for maintenance-free installation

Technical Specifications

Type	Single Row Angular Contact
Series Available	7200, 7300
Contact Angles	15° (C), 25° (AC), 40° (B)
Bore Size Range	10mm to 110mm
Outer Diameter Range	30mm to 240mm
Width Range	9mm to 50mm
Dynamic Load Rating (max)	Up to 165 kN (7300 series)
Static Load Rating (max)	Up to 132 kN
Precision Grades	P0 (standard), P6, P5, P4, P4A
Limiting Speed	Up to 32,000 RPM (7200 series, P4 grade)
Cage Material	Polyamide (PA66) or machined brass
Arrangement Options	DB, DF, DT (matched pairs and sets)

Applications

The Angular Contact Ball Bearings is used across a wide range of industrial applications:

CNC machine tool spindles — milling, turning, and grinding main spindles
High-speed pumps — axial thrust handling in multistage centrifugal pumps
Compressors — screw and reciprocating compressor shaft bearings
Precision gearboxes — input shafts in machine tool and robot gearboxes
Printing presses — impression and plate cylinder shaft support
Woodworking spindles — high-speed routing and moulding spindle bearings

Industries Served

Machine Tools & CNCPumps & CompressorsPrinting & PackagingWoodworking & FurnitureRobotics & Automation

Need Angular Contact Ball Bearings? Get the Best Dealer Price

As your SKF dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire Angular Contact Ball Bearings range. Contact us for availability and your best quote.

Request Quote on WhatsApp Call +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | SKF Dealer

Frequently Asked Questions — Angular Contact Ball Bearings

A 15° contact angle (C suffix) is best for high-speed applications with moderate axial loads. A 25° contact angle (AC) provides a balanced compromise between speed and axial load capacity — this is the most common choice. A 40° contact angle (B) maximizes axial load capacity and rigidity, ideal for heavy axial thrust in machine tool spindles and screw drives.
