What is the difference between straight tubes and recoil hoses?

Straight tubes (EU-series) come in rolls and are cut to length for permanent installations. Recoil hoses (EUC-series) are pre-coiled and self-retracting, ideal for portable tools and workstations where the hose needs to retract when not in use. Recoils with connectors (EUC-C) include factory-fitted swivel fittings for instant connection.

Can I use PU tubes near welding operations?

Standard PU tubes will melt or burn from welding sparks. Use the SPAC AU-series anti-spark PU tubes which have a fire-resistant outer layer specifically designed for welding environments. The outer layer resists spark and slag damage while the inner TPU layer maintains pneumatic performance.

What colours are available and why does colour matter?

SPAC PU tubes are available in blue, yellow, black, green, red, transparent, clear blue, clear red, and milky white. Colour-coding your pneumatic circuits (e.g., blue for supply, red for exhaust, yellow for signal) makes maintenance and troubleshooting significantly faster. Transparent and milky white tubes are preferred in food and pharmaceutical environments for visual cleanliness.

SPAC PneumaticAuthorized Dealer

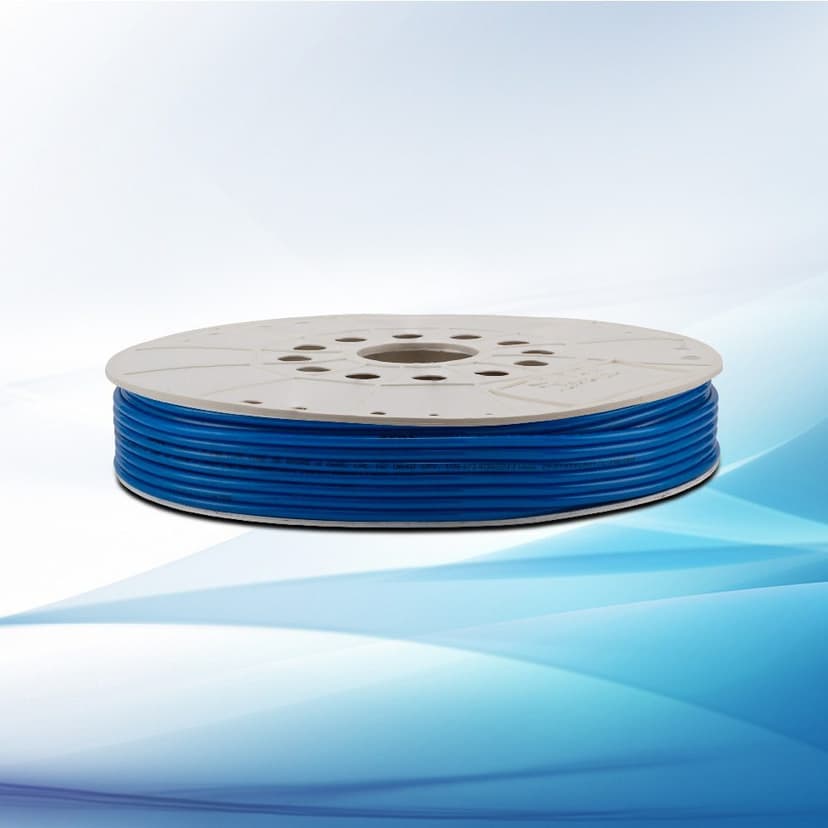

Polyurethane Tubes & Recoil Hoses — PU Pneumatic Tubing

SPAC Polyurethane (PU) tubes and recoil hoses are the primary air-conveying consumables for all pneumatic systems. The EU-series straight tubes are manufactured from 100% TPU (Thermoplastic Polyurethane), lab-tested and certified RoHS, REACH, and Prop 65 compliant. Available in OD sizes from 4mm to 16mm, roll lengths from 50 to 200 metres, and multiple colour options including blue, yellow, black, green, red, transparent, clear blue, clear red, and milky white. The EUC-series recoil hoses feature pre-coiled PU tubing with swivel connectors for quick-connect applications, available in G1/4 inch and G3/8 inch thread with lengths from 3 to 15 metres. Anti-spark AU-series tubes with fire-resistant outer layers are also available for welding environments. Shri Narayan Machinery LLP in Noida stocks the full SPAC PU tubing range for immediate dispatch.

Request Quote Call +91-9811104037

Material: 100% TPU (Thermoplastic Polyurethane)Operating Pressure: 0–10 kgf/cm²Burst Pressure: 25 kgf/cm²Operating Temperature: -5°C to 60°C

Key Features

100% TPU (Thermoplastic Polyurethane) — guaranteed lab-tested quality

RoHS, REACH, and Prop 65 compliant for safety

Operating pressure: 0–10 kgf/cm², burst pressure: 25 kgf/cm²

Operating temperature: -5°C to 60°C

Fluid type: Air and Water compatible

Colour options: Blue, Yellow, Black, Green, Red, Transparent, Clear Blue/Red, Milky White

Recoil hoses with swivel connectors for tool-free installation

Anti-spark AU-series with fire-resistant outer layer for welding applications

Technical Specifications

Material	100% TPU (Thermoplastic Polyurethane)
Operating Pressure	0–10 kgf/cm²
Burst Pressure	25 kgf/cm²
Operating Temperature	-5°C to 60°C
Fluid Type	Air, Water
Tube OD Range	4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm
Tube ID Range	2.5mm, 4mm, 5mm, 5.5mm, 6mm, 6.5mm, 8mm, 10mm, 12mm
Roll Lengths	3m, 5m, 10m, 15m, 50m, 100m, 200m
Certifications	RoHS, REACH, Prop 65
Colours Available	Blue, Yellow, Black, Green, Red, Transparent, Clear Blue, Clear Red, Milky White

Available Models & Variants

EU-Series

Straight PU Tubes (Rolls)

Standard polyurethane tubing in 50m, 100m, and 200m roll lengths. Available in blue/yellow, multi-colour (black/green/red/transparent), clear blue/red, and milky white. The most economical option for permanent pneumatic installations.

EUC-Series

PU Recoil Hoses (Coiled)

Pre-coiled polyurethane hoses in 3m, 5m, 10m, and 15m working lengths. Self-retracting design keeps the work area tidy. Blue/yellow colour options.

EUC-C Series

Recoils with Swivel Connectors

Pre-coiled PU hoses with factory-fitted G1/4" or G3/8" swivel connectors for instant plug-and-play installation. No separate fittings needed — connect directly to air supply outlets.

AU-Series

Anti-Spark PU Tubes

Fire-resistant outer layer PU tubing designed for welding and fabrication environments. Resists spark and welding slag damage. Bursting pressure exceeds 30 bar. Available in 6x4x8, 8x5x10, 10x6.5x12, and 12x8x14 sizes in 50m rolls.

Applications

The PU Tubes & Recoils is used across a wide range of industrial applications:

Pneumatic circuit tubing — connecting cylinders, valves, FRL units, and fittings
Machine tool air supply — coolant blow-off and spindle air purge lines
Recoil hoses for portable air tools — grinders, drills, blow guns
Packaging machinery — actuator and sensor air supply lines
Welding stations — anti-spark PU tubes for gas and air delivery near sparks
Clean environments — milky white or transparent tubes for food and pharma visibility
Colour-coded pneumatic circuits for easy maintenance and troubleshooting

Industries Served

Manufacturing & AutomationMachine Tools & CNCWelding & FabricationPackaging & BottlingFood Processing & Pharmaceutical

Why Buy From Shri Narayan Machinery LLP?

PU tubing is the lifeblood of any pneumatic system — every cylinder, valve, and fitting needs tubing to function. SPAC PU tubes offer genuine 100% TPU material with lab-tested burst pressure ratings, unlike cheaper alternatives that use blended materials prone to cracking. The wide colour range enables colour-coded circuits for easier maintenance. Stocked in Noida at Shri Narayan Machinery for same-day availability.

Need PU Tubes & Recoils? Get the Best Dealer Price

As an authorized SPAC Pneumatic dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire PU Tubes & Recoils range. Contact us for availability and your best quote.

Request Quote on WhatsApp Call +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | SPAC Pneumatic Authorized Dealer

Straight PU Tube Size Reference (EU-Series)

All available SPAC polyurethane tube sizes with OD x ID dimensions and roll lengths.

Model / Size	Item Code	Size (OD x ID)	Length
EU0425	4 x 2.5mm	100m, 200m	Blue/Yellow, Multi-colour, Clear Blue/Red
EU0640	6 x 4.0mm	100m	Blue/Yellow, Multi-colour, Clear Blue/Red, Milky White
EU0850	8 x 5.0mm	100m	Blue/Yellow, Multi-colour, Clear Blue/Red
EU0855	8 x 5.5mm	100m	Blue/Yellow, Multi-colour, Clear Blue/Red, Milky White
EU0860	8 x 6.0mm	100m	Blue/Yellow, Multi-colour, Clear Blue/Red
EU1065	10 x 6.5mm	100m	Blue/Yellow, Multi-colour, Clear Blue/Red, Milky White
EU1080	10 x 8.0mm	100m	Blue
EU1280	12 x 8.0mm	100m	Blue/Yellow, Multi-colour, Clear Blue/Red, Milky White
EU1410	14 x 10mm	50m	Blue/Yellow, Multi-colour
EU1612	16 x 12mm	50m	Blue/Yellow, Multi-colour

* 100% TPU material — lab tested, RoHS/REACH/Prop 65 compliant

* Tube holders (TBH-6MM to TBH-12MM) available separately

* Tube cutter (TUC-01) available for clean cuts

* GST, packaging & forwarding extra as applicable

Recoil Hose Size Reference (EUC & EUC-C Series)

Pre-coiled PU hoses available in plain (EUC) and connector-fitted (EUC-C) variants.

Model / Size	Size (OD x ID)	Lengths Available
6 x 4.0mm	3m, 5m, 10m, 15m	Plain or G1/4" swivel
8 x 5.0mm	3m, 5m, 10m, 15m	Plain or G1/4" swivel
8 x 5.5mm	3m, 5m, 10m, 15m	Plain
10 x 6.5mm	3m, 5m, 10m, 15m	Plain or G1/4" swivel
12 x 8.0mm	3m, 5m, 10m, 15m	Plain or G3/8" swivel
16 x 12.0mm	3m, 5m, 10m, 15m	Plain

* Recoils available in blue/yellow colour

* Swivel connectors enable easy gripping and quick installation

* GST, packaging & forwarding extra as applicable

Need a specific size or model? Call +91-9811104037 or WhatsApp us for availability and best dealer pricing.

Frequently Asked Questions — PU Tubes & Recoils

The most common sizes are 8x5mm (8mm OD, 5mm ID) and 6x4mm (6mm OD, 4mm ID) for standard automation. Use 4x2.5mm for compact circuits with low flow. Use 10x6.5mm or 12x8mm for higher flow or longer runs. The size code format is OD x ID — for example, EU0850 means 8mm OD x 5mm ID.
