Miranda 2 Flute Solid Carbide End Mills: DIN 6535HA, AlTiN, 0.5mm to 20mm | Miranda (Dormer Pramet) pneumatic product available at Shri Narayan Machinery LLP Noida
Miranda (Dormer Pramet)

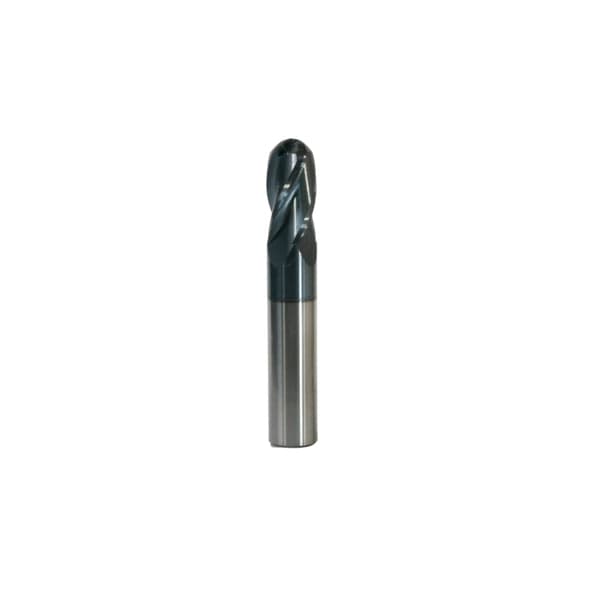

Miranda 2 Flute Solid Carbide End Mills: DIN 6535HA, AlTiN, 0.5mm to 20mm

Full-width slotting fills flutes fast, which is why the 2-flute end mill exists: bigger chip gullets that clear the slot instead of packing it. Miranda's solid carbide 2-flute range runs 0.50mm to 20.00mm on DIN 6535HA shanks (h10), with a 35° helix and 10° radial rake for clean chip formation in steel and aluminium, plus centre-cutting tips that plunge and ramp straight into solid stock. AlTiN coating takes the heat of buried-tool cuts; keep depth to about 1xD per pass in a full slot. For aluminium's long stringy chips, two flutes are the default choice anyway. Job shops and mould rooms across Noida-NCR buy these for keyways, pockets, and profiling. Stocked at Sector 9, Noida; WhatsApp sizes and quantity for price.

Request QuoteCall +91-9811104037

Available — pickup today from Sector 9, Noida

Same-day Delhi NCR dispatch · call to confirm stock on your exact model

Diameter Range: 0.50mm to 20.00mmNumber of Flutes: 2Helix Angle: 35°Rake Angle: 10° radial

Key Features

2-flute design with large chip gullets for superior chip evacuation in slotting
35° helix angle for smooth cutting action and reduced vibration
10° radial rake angle for efficient chip formation in steel and aluminium
AlTiN coating for thermal stability during full-width slot cutting
DIN 6535HA plain cylindrical shank with h10 tolerance
Available from 0.50mm to 20.00mm diameter
Suitable for centre cutting, can plunge directly into material
Micro-grain carbide for edge sharpness retention

Technical Specifications

Diameter Range0.50mm to 20.00mm
Number of Flutes2
Helix Angle35°
Rake Angle10° radial
CoatingAlTiN (Aluminium Titanium Nitride)
StandardDIN 6535HA
Shank Toleranceh10
SubstrateMicro-grain tungsten carbide
Centre CuttingYes

Applications

The 2 Flute End Mills is used across a wide range of industrial applications:

  • Full-width slot milling in steel, stainless steel, and aluminium
  • Pocket milling and cavity roughing on CNC machining centres
  • Side milling and profiling operations
  • Plunge milling and ramping into solid material
  • Keyway cutting and slot machining
  • Prototype machining and small-batch production
  • Aluminium machining where chip clearance is critical

Industries Served

General engineering and job shopsMould and die makingAutomotive component manufacturingAerospace machiningTool room operationsElectronics and precision engineering

Need 2 Flute End Mills? Get the Best Dealer Price

As your Miranda (Dormer Pramet) dealer, Shri Narayan Machinery LLP offers competitive pricing on the full 2 Flute End Mills range. Call us for availability and your best quote.

Request Quote on WhatsAppCall +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | Miranda (Dormer Pramet) Dealer

Frequently Asked Questions: 2 Flute End Mills

Always use a 2-flute end mill for full-width slotting (cutting a slot equal to the cutter diameter). Two flutes give larger chip gullets, which means better chip evacuation when chips can only exit upward through the flutes. A 4-flute end mill in a full slot will pack chips, causing heat build-up, poor surface finish, and potential tool breakage. Use 4-flute end mills for side milling, finishing, and partial-width cuts where chip space isn't an issue.
