Miranda 4 Flute Solid Carbide End Mills: Standard, Long & Extra Long, 1mm to 25mm | Miranda (Dormer Pramet) pneumatic product available at Shri Narayan Machinery LLP Noida
Miranda (Dormer Pramet)

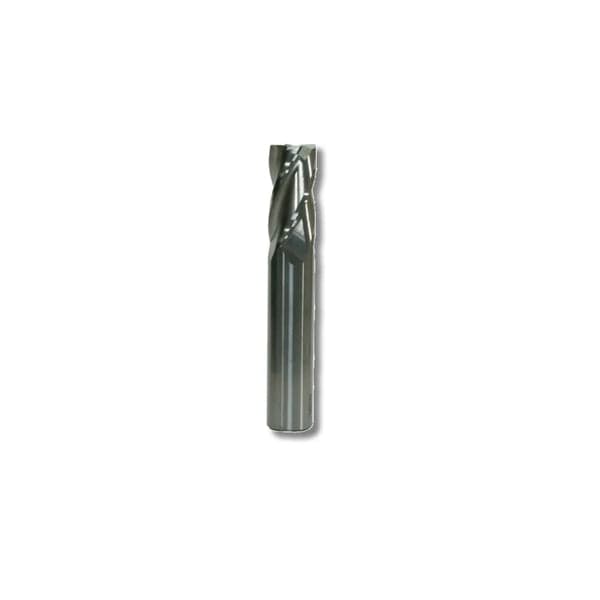

Miranda 4 Flute Solid Carbide End Mills: Standard, Long & Extra Long, 1mm to 25mm

When surface finish and metal removal rate matter, Miranda 4-flute end mills deliver. Four cutting edges let you double your feed rate compared to a 2-flute at the same RPM, or keep the same feed and get a finer finish. Available in Standard, Long, and Extra Long lengths from 1.00mm to 25.00mm diameter, this range covers everything from precision finishing to deep-pocket roughing. The 35-degree helix and AlTiN coating carry over from the 2-flute series for consistent cutting performance across the Miranda end mill family. The DIN 6535HA plain shank with h10 tolerance fits all standard collet chucks and shrink-fit holders. Standard length handles most jobs. Long length reaches deeper pockets and shoulders. Extra Long is for deep cavities where you need maximum reach without extension holders. Request a quote from Shri Narayan Machinery LLP in Noida.

Request QuoteCall +91-9811104037
Diameter Range: 1.00mm to 25.00mmNumber of Flutes: 4Helix Angle: 35°Coating: AlTiN (Aluminium Titanium Nitride)

Key Features

4-flute design for higher feed rates and superior surface finish
Available in Standard, Long, and Extra Long lengths for all reach requirements
35° helix angle for smooth cutting and reduced chatter
AlTiN coating for extended tool life in steel, stainless, and cast iron
DIN 6535HA plain shank with h10 tolerance for universal holder compatibility
Diameter range 1.00mm to 25.00mm, covers micro to large milling
Centre cutting capability for plunge and ramp entry
Micro-grain carbide substrate for consistent edge quality

Technical Specifications

Diameter Range1.00mm to 25.00mm
Number of Flutes4
Helix Angle35°
CoatingAlTiN (Aluminium Titanium Nitride)
StandardDIN 6535HA
Shank Toleranceh10
Length OptionsStandard, Long, Extra Long
SubstrateMicro-grain tungsten carbide
Centre CuttingYes

Applications

The 4 Flute End Mills is used across a wide range of industrial applications:

  • Side milling and profiling with high surface finish requirements
  • Finishing passes on CNC machining centres and VMCs
  • Deep pocket milling with Long and Extra Long variants
  • Shoulder milling and step cutting
  • High-efficiency roughing with increased feed rates
  • Contour milling of complex 2D profiles
  • Production milling in automotive and general engineering

Industries Served

Automotive manufacturingGeneral engineering and job shopsMould and die makingAerospace component productionMedical device manufacturingDefence and ordnance

Need 4 Flute End Mills? Get the Best Dealer Price

As your Miranda (Dormer Pramet) dealer, Shri Narayan Machinery LLP offers competitive pricing on the full 4 Flute End Mills range. Call us for availability and your best quote.

Request Quote on WhatsAppCall +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | Miranda (Dormer Pramet) Dealer

Frequently Asked Questions: 4 Flute End Mills

Use Standard length for 90% of your work. It gives the best rigidity and tool life. Switch to Long length when you need to reach pockets deeper than 2xD or mill shoulders taller than Standard cutting length allows. Extra Long is only for deep cavities (4xD+) where no other option reaches. Every increase in overhang reduces rigidity and increases chatter risk, so always use the shortest end mill that reaches your feature.
