Miranda Ball Nose End Mills — 2 & 4 Flute, AlTiN, 1mm to 20mm — Miranda (Dormer Pramet) pneumatic product available at Shri Narayan Machinery LLP Noida
Miranda (Dormer Pramet)

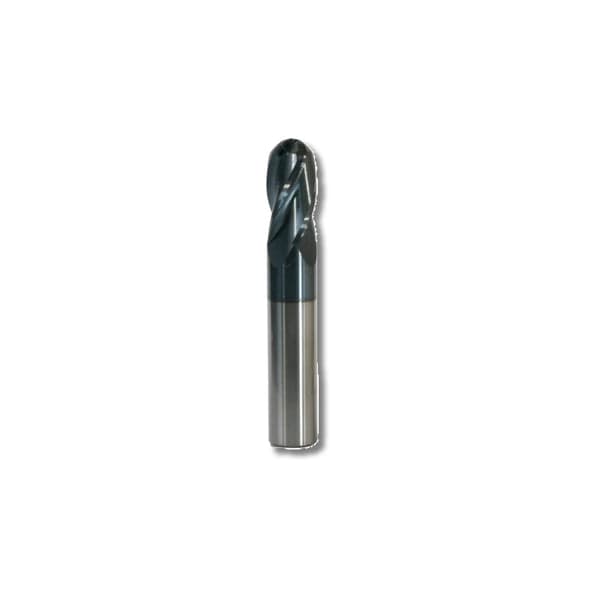

Miranda Ball Nose End Mills — 2 & 4 Flute, AlTiN, 1mm to 20mm

Ball nose end mills are essential for 3D contouring, mould cavity finishing, and any machining operation that involves curved surfaces. Miranda's ball nose range comes in both 2-flute and 4-flute configurations, from 1.00mm to 20.00mm diameter, in Standard and Long lengths. The hemispherical tip follows complex 3D tool paths smoothly, producing scalloped surfaces that can be finished to mirror quality with proper step-over settings. The 2-flute variants excel at rough contouring and deep cavity work where chip clearance matters, while the 4-flute versions deliver finer surface finish on finishing passes. AlTiN coating ensures these tools handle the demanding thermal conditions of 3D contouring where cutting speed varies from zero at the tip to maximum at the periphery. Available at Shri Narayan Machinery LLP in Noida — request a quote for mould-making tool sets.

Request QuoteCall +91-9811104037
Diameter Range: 1.00mm to 20.00mmFlute Options: 2-flute and 4-fluteBall Radius: 0.50mm to 10.00mm (half of diameter)Coating: AlTiN (Aluminium Titanium Nitride)

Key Features

Hemispherical ball tip for smooth 3D contouring and profiling
Available in 2-flute (roughing, deep cavities) and 4-flute (finishing) variants
Standard and Long lengths for shallow and deep mould cavities
AlTiN coating handles variable cutting speeds across the ball profile
Diameter range 1.00mm to 20.00mm for micro to large contour work
DIN 6535HA shank with h10 tolerance for precision tool holding
Micro-grain carbide for sharp edge retention on curved surfaces
Centre cutting capability for plunge and 3D roughing tool paths

Technical Specifications

Diameter Range1.00mm to 20.00mm
Flute Options2-flute and 4-flute
Ball Radius0.50mm to 10.00mm (half of diameter)
CoatingAlTiN (Aluminium Titanium Nitride)
StandardDIN 6535HA
Shank Toleranceh10
Length OptionsStandard, Long
SubstrateMicro-grain tungsten carbide

Applications

The Ball Nose End Mills is used across a wide range of industrial applications:

  • 3D contouring and surface finishing on CNC 3-axis and 5-axis machines
  • Mould cavity finishing and core machining
  • Die sinking and progressive die contour work
  • Sculptured surface machining for aerospace components
  • Rest material machining in corners and fillets
  • Medical implant and prosthetic component contouring
  • Prototype machining of complex freeform surfaces

Industries Served

Mould and die makingAerospace manufacturingMedical device productionAutomotive toolingConsumer product design and prototypingJewellery and precision craft manufacturing

Need Ball Nose End Mills? Get the Best Dealer Price

As your Miranda (Dormer Pramet) dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire Ball Nose End Mills range. Contact us for availability and your best quote.

Request Quote on WhatsAppCall +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | Miranda (Dormer Pramet) Dealer

Frequently Asked Questions — Ball Nose End Mills

For a mirror-like finish on moulds, use a step-over of 3-5% of the ball diameter. For general finishing, 8-10% works well. For roughing, you can go up to 25-30% step-over. For example, with a 10mm ball nose end mill, a 0.5mm step-over (5%) gives an excellent surface finish with scallop height under 1 micron. The finer the step-over, the smoother the surface — but machining time increases significantly.
