ESC Series — Tie Rod Pneumatic Cylinder

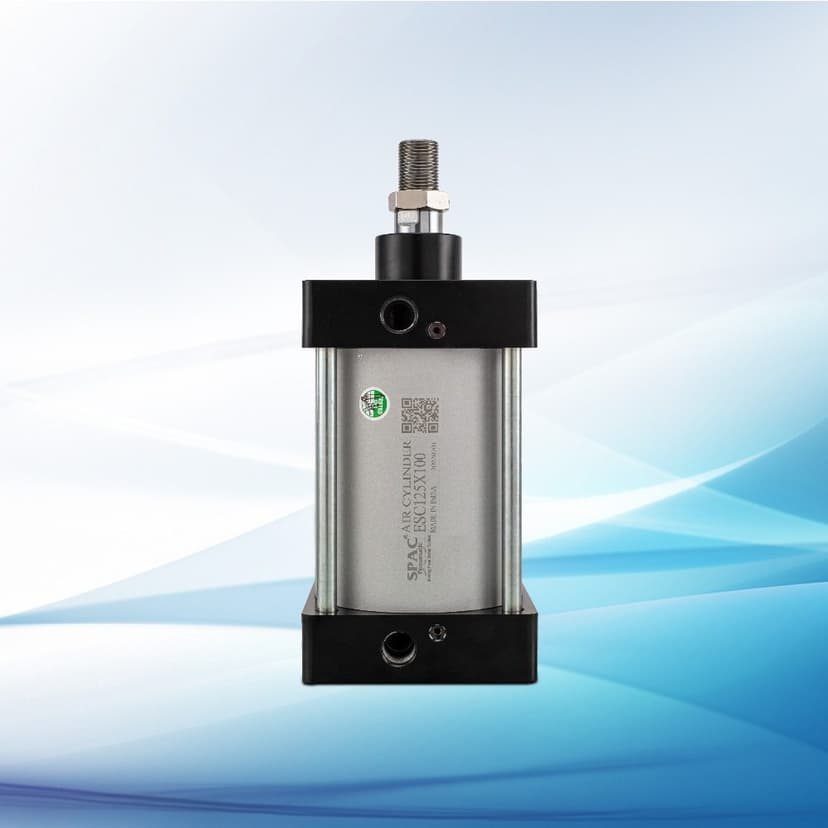

The SPAC ESC Series is a compact tie rod pneumatic cylinder designed for general-purpose industrial automation where ISO 15552 compliance is not mandatory. Available in bore sizes from 32mm to 125mm with stroke lengths from 25mm to 1000mm, the ESC offers reliable double-acting performance at a lower cost than the ESNC series. Features adjustable cushioning at both ends and is available in non-magnetic (ESC), magnetic (ESC-S), double-ended (ESC-2S), and magnetic double-ended (ESC-2SS) variants. The ESC series is widely used in small to medium factories, workshops, and automation projects across India where moderate force output is sufficient.
Key Features
Technical Specifications
| Action Type | Double Acting |
| Cushion | Adjustable at Both Ends |
| Operating Pressure | 1–10 kgf/cm² |
| Operating Temperature | -5°C to 70°C |
| Fluid Type | Compressed Air, Lubricated & Filtered |
| Bore Sizes (mm) | 32, 40, 50, 63, 80, 100, 125 |
| Stroke Range (mm) | 25 to 1000 |
| Port Sizes | G1/8" (32mm bore) to G1/2" (125mm bore) |
Available Models & Variants

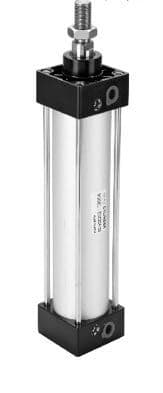

ESC — Standard Non-Magnetic
General-purpose double-acting tie rod cylinder for applications not requiring position sensing.
ESC-S — Magnetic (Sensor-Ready)
Includes magnetic piston for use with external position sensors. Essential for automated sequence control.
ESC-2S — Double-Ended Non-Magnetic

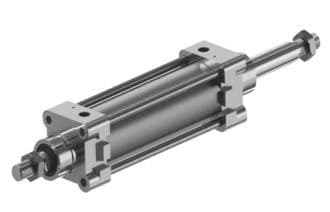

Piston rods on both ends for dual actuation or mechanical position feedback.
ESC-2SS — Double-Ended Magnetic
Full-featured variant with dual piston rods and magnetic position sensing capability.
Applications
The ESC Tie Rod Cylinder is used across a wide range of industrial applications:
- Small to medium automation systems
- Workshop jigs and fixtures — clamping, holding, pressing
- Conveyor systems — diverters, pushers, stoppers
- Pneumatic presses — light stamping and embossing
- Packaging — box erecting, flap folding, sealing
- Gate and door automation
- Agricultural machinery — seed dispensing, sorting
- Testing and inspection equipment
Industries Served
Why Buy From Shri Narayan Machinery LLP?
The SPAC ESC Series is the ideal choice when you need reliable pneumatic actuation without the cost of ISO 15552 compliance. For workshops, small factories, and custom automation projects where bore sizes up to 125mm are sufficient, the ESC delivers the same quality construction as the ESNC at a lower price point. Seal kits are readily available and the tie rod design makes field maintenance straightforward.
Need ESC Tie Rod Cylinder? Get the Best Dealer Price
As an authorized SPAC Pneumatic dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire ESC Tie Rod Cylinder range. Contact us for availability and your best quote.
C-101, Sector 9, Noida, Uttar Pradesh 201301 | SPAC Pneumatic Authorized Dealer
Available Models & Bore Sizes
The SPAC ESC series is available in four variants across 7 bore sizes with strokes from 25mm to 1000mm.
| Model / Size | Model | Type | 32mm | 40mm | 50mm | 63mm | 80mm | 100mm | 125mm |
|---|---|---|---|---|---|---|---|---|---|
| ESC | Non-Magnetic | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| ESC-S | Magnetic | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| ESC-2S | Double-Ended | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| ESC-2SS | Double-Ended Magnetic | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
* Seal kits available for all bore sizes
Need a specific size or model? Call +91-9811104037 or WhatsApp us for availability and best dealer pricing.
