How do I choose the right fitting size?

Fitting size is determined by two measurements: the tube outer diameter (OD) — 4mm, 6mm, 8mm, 10mm, or 12mm — and the thread size of the port you're connecting to (M5, 1/8", 1/4", 3/8", or 1/2"). The size code on SPAC fittings uses the format [tube OD]-[thread code], e.g., 08-02 means 8mm tube with 1/4" thread.

What is the difference between A-Series and E-Series fittings?

Both are push-in fittings, but the E-Series supports larger tube sizes up to 16mm OD and uses R-thread (tapered) instead of G-thread (parallel). The A-Series is more commonly used for standard pneumatic circuits, while the E-Series is preferred for larger diameter tubing and higher flow applications.

What is a flow control valve (speed controller)?

The ASLG flow control valve is an adjustable fitting that controls the speed of a pneumatic cylinder by restricting airflow. It has a knob that you turn to open or close a needle valve. Install one on each port of a cylinder to independently control extension and retraction speeds. This is essential for smooth, controlled automation.

Push-In Fittings — A Series Pneumatic Connectors — SPAC Pneumatic pneumatic product available at Shri Narayan Machinery LLP Noida

SPAC PneumaticAuthorized Dealer

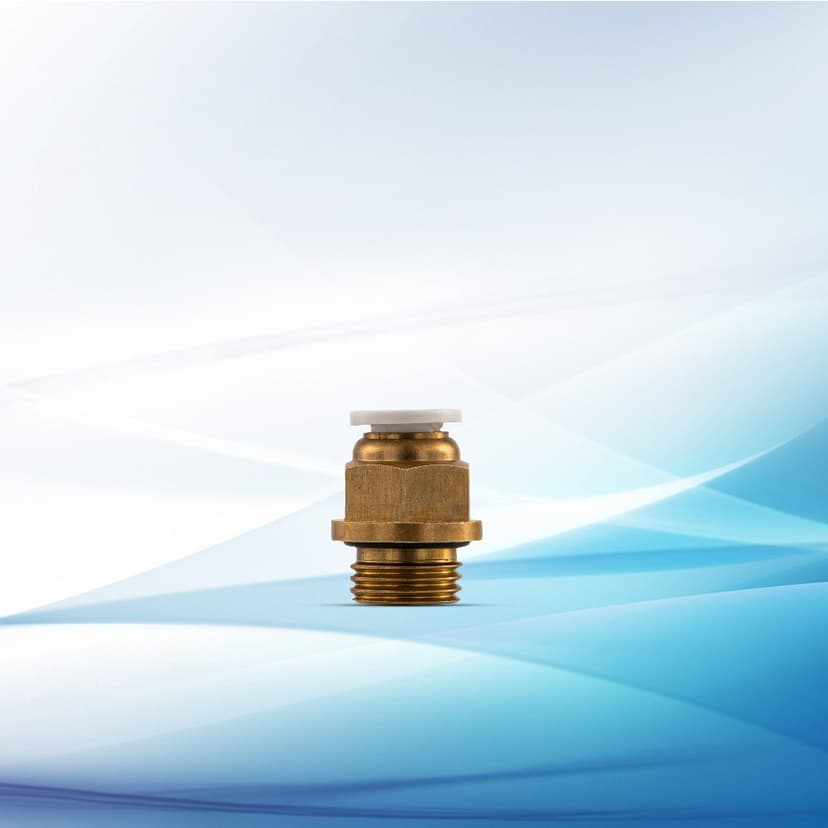

Push-In Fittings — A Series Pneumatic Connectors

SPAC A-Series push-in fittings are high-quality pneumatic connectors designed for quick, tool-free tube connections in industrial automation systems. Simply push the tube into the fitting for an instant, leak-free seal — pull the collet ring to release. Available in over 20 connector types including straight connectors (APCG), elbow connectors (APLG), tee connectors (APBG), Y-connectors (APXG), flow control valves (ASLG), and cross connectors (APZG). The A-Series supports tube OD from 4mm to 12mm with G-thread sizes from M5 to 1/2 inch. Made from nickel-plated brass with PBT plastic bodies, these fittings handle operating pressures up to 10 kgf/cm². Available at Shri Narayan Machinery in Noida.

Request Quote Call +91-9811104037

Operating Pressure: 0–10 kgf/cm²Max Pressure: 15.3 kgf/cm²Operating Temperature: -5°C to 60°CFluid Type: Air, Vacuum

Key Features

Push-in connection — no tools required for tube insertion

Pull-to-release collet ring for easy disconnection

Nickel-plated brass threads for corrosion resistance

PBT plastic body — lightweight and chemical resistant

20+ connector types for any pneumatic circuit configuration

Tube OD: 4mm, 6mm, 8mm, 10mm, 12mm

Thread sizes: M5, G1/8", G1/4", G3/8", G1/2"

Max operating pressure: 15.3 kgf/cm²

Operating temperature: -5°C to 60°C

Compatible with polyurethane and nylon tubing

Technical Specifications

Operating Pressure	0–10 kgf/cm²
Max Pressure	15.3 kgf/cm²
Operating Temperature	-5°C to 60°C
Fluid Type	Air, Vacuum
Tube Material Compatibility	Polyurethane (PU), Nylon
Tube OD Range	4mm, 6mm, 8mm, 10mm, 12mm
Thread Standard	G (BSP) — M5, 1/8", 1/4", 3/8", 1/2"
Body Material	PBT Plastic
Thread Material	Nickel-Plated Brass

Available Models & Variants

APCG

Straight Connector (Male)

Connects tube directly to a threaded port in a straight line. The most commonly used pneumatic fitting.

APLG

Elbow Connector (Male)

90-degree angle connection between tube and threaded port. Used where space constraints require a right-angle tube path.

APBG

Tee Connector (Male Branch)

T-shaped fitting that splits or merges airflow between one threaded port and two tube outlets. Essential for branching pneumatic circuits.

APXG

Male Branch Y Connector

Y-shaped fitting for splitting airflow at an angle. Provides smoother flow characteristics than a tee for certain configurations.

APCF

Female Connector

Connects tube to a female (internal) threaded port. Used with male-threaded manifolds and valve blocks.

ASLG

Flow Control Valve (Speed Controller)

Adjustable needle valve that controls the airflow speed to or from a pneumatic cylinder. Turn the knob to fine-tune cylinder speed. One of the most important fittings for smooth automation.

APDG

Male Run Tee

T-fitting where the main (run) flow continues straight through the threaded connection, with a branch tube outlet on the side.

APZG

Equal Cross Connector

Four-way cross fitting for complex pneumatic circuit junctions. Connects four tubes or tube-to-port combinations.

APE

Equal Tee (Tube-to-Tube)

Three-way tube-to-tube tee connector. No thread — all three ports accept tubes directly. Used for tube-only circuit branches.

APV

Equal Elbow (Tube-to-Tube)

90-degree tube-to-tube elbow. No thread — connects two tubes at right angles.

APP

Blanking Plug

Seals an unused tube port. Push in to block the tube opening when a circuit path is not needed.

Applications

The A-Series Fittings is used across a wide range of industrial applications:

Pneumatic circuit assembly — connecting cylinders, valves, and FRL units
Machine tool pneumatics — coolant blow-off, clamping circuits
Packaging machinery — air-operated actuators and sensors
Automated assembly — point-of-use air connections
Maintenance and repair — quick replacement of damaged fittings
Prototype and test rigs — rapid pneumatic circuit building

Industries Served

All industries using pneumatic systemsManufacturing & AutomationPackagingMachine ToolsGeneral Engineering

Why Buy From Shri Narayan Machinery LLP?

Push-in fittings are consumable items that every pneumatic system needs. The SPAC A-Series offers comprehensive coverage with 20+ connector types at competitive Indian pricing. Unlike imported fittings, SPAC A-Series fittings are readily available in Noida — no waiting weeks for international shipments. The quality matches international standards (working pressure up to 15.3 kgf/cm²) and they're compatible with standard PU and nylon tubing from any manufacturer.

Need A-Series Fittings? Get the Best Dealer Price

As an authorized SPAC Pneumatic dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire A-Series Fittings range. Contact us for availability and your best quote.

Request Quote on WhatsApp Call +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | SPAC Pneumatic Authorized Dealer

Complete A-Series Model Reference

Every SPAC A-Series push-in fitting model code with available sizes. Size format: first digits = tube OD, last digits = thread code (M5, 01=1/8", 02=1/4", 03=3/8", 04=1/2").

Model / Size	Model Code	Type
APCG	Straight Connector (Male)	4-M5, 04-01, 04-02, 6-M5, 06-01, 06-02, 06-03, 06-04, 08-01, 08-02, 08-03, 08-04, 10-01, 10-02, 10-03, 10-04, 12-01, 12-02, 12-03, 12-04
APLG	Elbow Connector (Male)	4-M5, 04-01, 04-02, 6-M5, 06-01, 06-02, 06-03, 06-04, 08-01, 08-02, 08-03, 08-04, 10-01, 10-02, 10-03, 10-04, 12-01, 12-02, 12-03, 12-04
APBG	Tee Connector (Male Branch)	4-M5, 04-01, 04-02, 6-M5, 06-01, 06-02, 06-03, 06-04, 08-01, 08-02, 08-03, 08-04, 10-01, 10-02, 10-03, 10-04, 12-01, 12-02, 12-03, 12-04
APXG	Male Branch Y Connector	4-M5, 04-01, 04-02, 6-M5, 06-01, 06-02, 06-03, 06-04, 08-01, 08-02, 08-03, 08-04, 10-01, 10-02, 10-03, 10-04, 12-01, 12-02, 12-03, 12-04
APCF	Female Connector	4-M5, 04-01, 04-02, 6-M5, 06-01, 06-02, 06-03, 06-04, 08-01, 08-02, 08-03, 08-04, 10-01, 10-02, 10-03, 10-04, 12-01, 12-02, 12-03, 12-04
ASLG	Flow Control Valve	4-M5, 4-01, 4-02, 6-M5, 06-01, 06-02, 06-03, 08-01, 08-02, 08-03, 08-04, 10-01, 10-02, 10-03, 10-04, 12-02, 12-03, 12-04
APDG	Male Run Tee	4-M5, 4-01, 4-02, 6-M5, 06-01, 06-02, 06-03, 08-01, 08-02, 08-03, 10-01, 10-02, 10-03, 10-04, 12-01, 12-02, 12-03, 12-04
APZG	Equal Cross Connector	4-01, 4-02, 6-M5, 06-01, 06-02, 06-03, 08-01, 08-02, 08-03, 08-04, 10-01, 10-02, 10-03, 10-04, 12-01, 12-02, 12-03, 12-04
APKBG	Equal Multi Tee Connector	4-01, 4-02, 6-M5, 06-01, 06-02, 06-03, 06-04, 08-01, 08-02, 08-03, 08-04, 10-01, 10-02, 10-03, 10-04, 12-01, 12-02, 12-03, 12-04
APLF	Female Elbow Connector	4-M5, 4-01, 4-02, 6-M5, 06-01, 06-02, 06-03, 06-04, 08-01, 08-02, 08-03, 08-04, 10-01, 10-02, 10-03, 10-04, 12-01, 12-02, 12-03, 12-04
APP	Blanking Plug	6, 8, 10, 12
APE	Equal Tee (Tube-to-Tube)	4, 6, 8, 10, 12
APY	Equal Y (Tube-to-Tube)	4, 6, 8, 10, 12
APV	Equal Elbow (Tube-to-Tube)	4, 6, 8, 10, 12
APM	Blunk Head	4, 6, 8, 10, 12
APU	Equal Tube-to-Tube	4, 6, 8, 10, 12
APK	Equal Multi Tee (Tube-to-Tube)	6, 8, 10, 12
APZA	Equal Cross (Tube-to-Tube)	6, 8, 10, 12
APUB	Dead Plug	6, 8, 10, 12
APEG	Unequal Tee (2B-1S)	6-4, 8-6, 10-6, 10-8, 12-8, 12-10
APEW	Unequal Tee (2S-1B)	6-4, 8-6, 10-6, 10-8, 12-8, 12-10
APW	Unequal Y	6-4, 8-6, 10-8, 12-10
APG	Unequal Tube-to-Tube	6-4, 8-6, 10-6, 10-8, 12-8, 12-10

* Tailor-made and mini fittings available on request

* All fittings compatible with polyurethane (PU) and nylon tubing

* GST, packaging & forwarding extra as applicable

Need a specific size or model? Call +91-9811104037 or WhatsApp us for availability and best dealer pricing.

Frequently Asked Questions — A-Series Fittings

A push-in (or push-to-connect) fitting creates a pneumatic seal by simply pushing a tube into the fitting body. An internal collet grips the tube, and an O-ring creates an airtight seal. No tools, thread tape, or glue needed. To disconnect, push the collet ring toward the fitting body and pull the tube out.
