Push-In Fittings — E Series Pneumatic Connectors

SPAC E-Series push-in fittings are a premium range of pneumatic connectors supporting larger tube sizes up to 16mm OD. The E-Series uses R-thread (tapered BSP) connections and includes specialty fittings such as banjo elbows, hand valves, and bulkhead connectors not available in the A-Series. Ideal for high-flow pneumatic systems and larger bore cylinders requiring increased air volume. The E-Series offers superior flow characteristics and durability for demanding industrial environments.

Request QuoteCall +91-9811104037
Operating Pressure: 0–10 kgf/cm²Max Pressure: 15.3 kgf/cm²Operating Temperature: -5°C to 60°CTube OD Range: 4mm to 16mm

Key Features

Extended tube OD range: 4mm to 16mm
R-thread (tapered BSP) for positive sealing
Includes specialty fittings: banjo elbows, hand valves, bulkhead connectors
Higher flow capacity than A-Series for larger systems
Same push-in, pull-to-release operation
Nickel-plated brass threads, PBT plastic body

Technical Specifications

Operating Pressure0–10 kgf/cm²
Max Pressure15.3 kgf/cm²
Operating Temperature-5°C to 60°C
Tube OD Range4mm to 16mm
Thread StandardR (Tapered BSP) — M5, 1/8", 1/4", 3/8", 1/2"

Available Models & Variants

EPC

Male Connector

Standard straight tube-to-thread connector in the E-Series range.

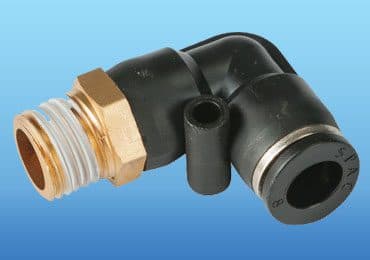

EPL

Male Elbow

90-degree elbow connector for E-Series pneumatic circuits.

EPB

Male Branch Tee

T-connector for branching airflow in E-Series circuits.

ESL

Flow Control Valve

Adjustable speed controller for E-Series tube sizes.

EHVFS

Hand Valve (Inline)

Manual on/off valve that installs inline. Turn by hand to start or stop airflow — useful for maintenance isolation and manual overrides.

EPH

Banjo Elbow

Rotating 360-degree elbow connection. Allows the tube to rotate freely after installation — prevents tube kinking in moving applications.

Applications

The E-Series Fittings is used across a wide range of industrial applications:

  • High-flow pneumatic systems
  • Large bore cylinder connections (125mm+)
  • Main airline distribution
  • Pneumatic tool supply lines
  • Heavy industrial automation

Industries Served

Heavy IndustryManufacturingAutomotive AssemblyMining & Construction Equipment

Why Buy From Shri Narayan Machinery LLP?

Choose the E-Series when your application requires tube sizes larger than 12mm, tapered thread connections, or specialty fittings like banjo elbows and hand valves not available in the A-Series.

Need E-Series Fittings? Get the Best Dealer Price

As an authorized SPAC Pneumatic dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire E-Series Fittings range. Contact us for availability and your best quote.

Request Quote on WhatsAppCall +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | SPAC Pneumatic Authorized Dealer

Frequently Asked Questions — E-Series Fittings

Use E-Series when you need tube sizes 14mm or 16mm OD, when your ports have R-thread (tapered BSP) instead of G-thread (parallel BSP), or when you need specialty fittings like banjo elbows or inline hand valves.
