Mini Push-In Fittings — Compact Pneumatic Connectors
SPAC Mini Push-In Fittings are ultra-compact pneumatic connectors engineered for space-constrained applications where standard A-Series or E-Series fittings are too large. Available in straight (MI-EPOC), elbow (MI-EPL), and flow control (MI-VPC, MI-VPL) configurations, these miniature fittings accept 4mm and 6mm tube OD with M5 and 1/8 inch thread connections. The all-metal nickel-plated brass construction ensures durability even in confined instrument panels and medical pneumatic assemblies. Mini fittings are ideal for electronics assembly, laboratory instruments, dental equipment, and any application demanding precise air delivery through narrow passages. Shri Narayan Machinery LLP stocks the complete SPAC mini fittings range in Noida for same-day availability across Delhi NCR, eliminating the need for costly import lead times on miniature pneumatic components.
Key Features
Technical Specifications
| Operating Pressure | 0–10 kgf/cm² |
| Operating Temperature | -5°C to 60°C |
| Tube OD Range | 4mm, 6mm |
| Thread Sizes | M5, G1/8" |
| Body Material | Nickel-Plated Brass |
| Fluid Type | Air, Vacuum |
| Connection Type | Push-In (One-Touch) |
| Connector Types | Straight, Elbow, Flow Control |
Available Models & Variants

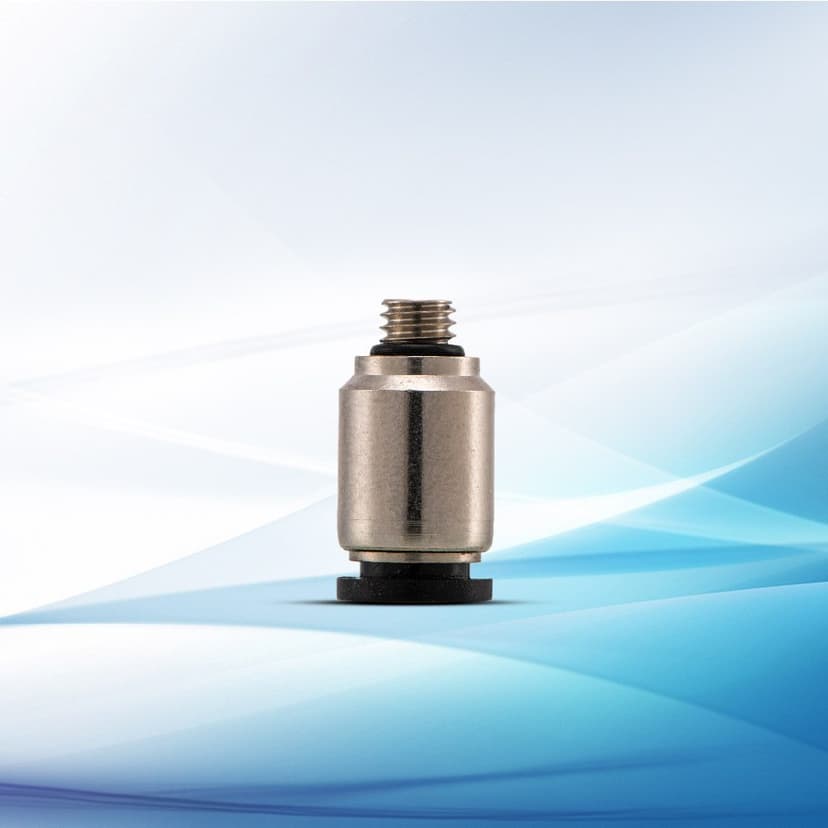

Mini Straight Connector
Ultra-compact straight push-in connector for direct tube-to-port connections in confined spaces. Available in 4mm and 6mm tube OD with M5 and 1/8" threads.
Mini Elbow Connector
Miniature 90-degree elbow fitting for right-angle tube routing in tight instrument panels and compact assemblies.
Mini Straight Flow Control
Compact inline speed controller for precise airflow regulation in miniature pneumatic circuits. Adjustable needle valve controls cylinder speed.
Mini Elbow Flow Control
Right-angle mini flow control valve combining 90-degree tube routing with adjustable speed control in a single compact fitting.
Applications
The Mini Fittings is used across a wide range of industrial applications:
- Electronics assembly — compact actuator circuits on PCB handling systems
- Medical and dental equipment — pneumatic instrument supply lines
- Laboratory instruments — precision air and gas delivery
- Instrument panels — confined routing of pneumatic control signals
- Miniature pneumatic grippers and pick-and-place units
- Sensor calibration equipment requiring low-volume airflow
Industries Served
Why Buy From Shri Narayan Machinery LLP?
When standard push-in fittings are physically too large for your application, SPAC mini fittings solve the problem without compromising on pneumatic performance. The all-metal construction outlasts plastic-body alternatives in demanding environments. Available off-the-shelf at Shri Narayan Machinery in Noida — no minimum order quantity, no import waiting period.
Need Mini Fittings? Get the Best Dealer Price
As an authorized SPAC Pneumatic dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire Mini Fittings range. Contact us for availability and your best quote.
C-101, Sector 9, Noida, Uttar Pradesh 201301 | SPAC Pneumatic Authorized Dealer
Complete Mini Fittings Model Reference
All SPAC mini fitting model codes with available tube OD and thread size combinations.
| Model / Size | Model Code | Type | Available Sizes |
|---|---|---|---|
| MI-EPOC4-M5-SPAC | Mini Straight Connector | 4mm tube, M5 thread | |
| MI-EPOC6-M5-SPAC | Mini Straight Connector | 6mm tube, M5 thread | |
| MI-EPOC6-01-SPAC | Mini Straight Connector | 6mm tube, 1/8" thread | |
| MI-EPOC4-01-SPAC | Mini Straight Connector | 4mm tube, 1/8" thread | |
| MI-EPL6-M5-SPAC | Mini Elbow Connector | 6mm tube, M5 thread | |
| MI-EPL4-M5-SPAC | Mini Elbow Connector | 4mm tube, M5 thread | |
| MI-EPL4-01-SPAC | Mini Elbow Connector | 4mm tube, 1/8" thread | |
| MI-EPL6-01-SPAC | Mini Elbow Connector | 6mm tube, 1/8" thread | |
| MI-VPC6-M5-SPAC | Mini Straight Flow Control | 6mm tube, M5 thread | |
| MI-VPC4-M5-SPAC | Mini Straight Flow Control | 4mm tube, M5 thread | |
| MI-VPL4-M5-SPAC | Mini Elbow Flow Control | 4mm tube, M5 thread | |
| MI-VPL6-M5-SPAC | Mini Elbow Flow Control | 6mm tube, M5 thread |
* Tailor-made mini fittings available on request
* Compatible with standard PU and nylon tubing
* GST, packaging & forwarding extra as applicable
Need a specific size or model? Call +91-9811104037 or WhatsApp us for availability and best dealer pricing.
