Nylon Tubes EA & EB Series — Pneumatic Nylon Tubing — SPAC Pneumatic pneumatic product available at Shri Narayan Machinery LLP Noida
SPAC PneumaticAuthorized Dealer

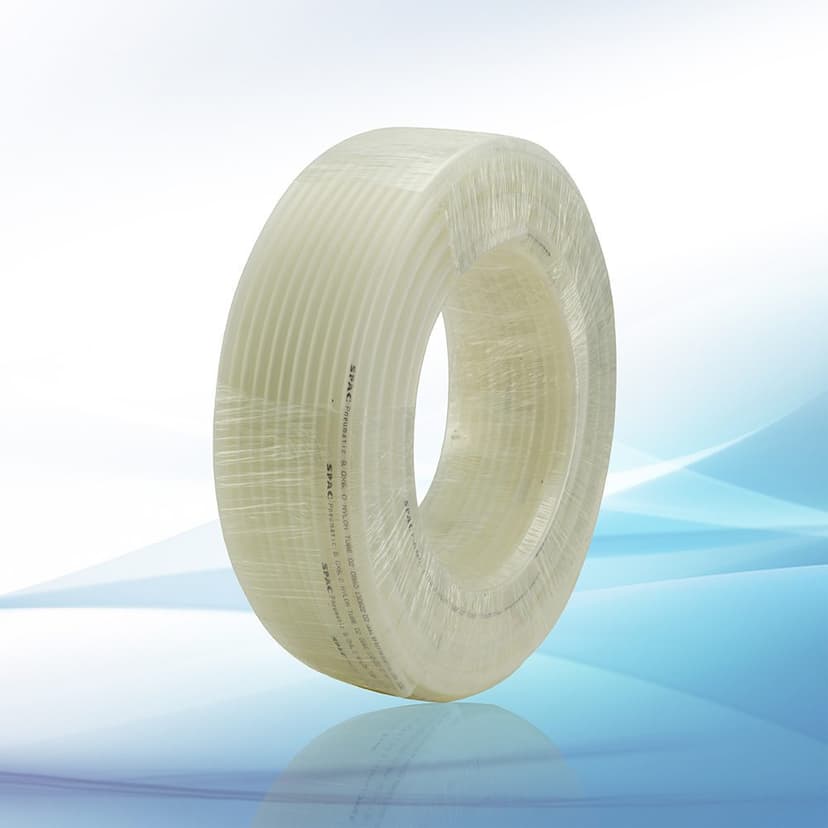

Nylon Tubes EA & EB Series — Pneumatic Nylon Tubing

SPAC Nylon Tubes in EA and EB Series offer a rigid, chemical-resistant alternative to polyurethane tubing for pneumatic applications requiring higher stiffness, longer straight runs, or exposure to oils, solvents, and chemicals. The EA Series is available in milky white in OD sizes from 4mm to 12mm, while the EB Series comes in blue and black options with OD sizes from 4mm to 16mm. Nylon tubing has a higher natural rigidity than PU, making it the preferred choice for long, straight pneumatic runs in factories, outdoor installations, and chemical processing environments where PU tubing would soften or swell. Operating at 0 to 10 kgf/cm² with a temperature range of -5 to 60 degrees Celsius, SPAC nylon tubes are compatible with all standard push-in fittings. Available at Shri Narayan Machinery LLP in Noida.

Request QuoteCall +91-9811104037
Material: Nylon (Polyamide)Operating Pressure: 0–10 kgf/cm²Operating Temperature: -5°C to 60°CEA Series Tube OD: 4mm, 6mm, 8mm, 10mm, 12mm

Key Features

Higher rigidity than PU — ideal for long, straight pneumatic runs
Superior chemical resistance to oils, solvents, and cleaning agents
EA Series: milky white for clean environments and visual inspection
EB Series: blue and black options for colour-coded industrial circuits
OD sizes from 4mm to 16mm covering all standard pneumatic applications
Operating pressure: 0–10 kgf/cm²
Operating temperature: -5°C to 60°C
Compatible with all SPAC push-in fittings (A-Series, E-Series, Mini)

Technical Specifications

MaterialNylon (Polyamide)
Operating Pressure0–10 kgf/cm²
Operating Temperature-5°C to 60°C
EA Series Tube OD4mm, 6mm, 8mm, 10mm, 12mm
EB Series Tube OD4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm
EA Series ColourMilky White
EB Series ColoursBlue, Black
Roll Lengths50m, 100m, 200m
Fitting CompatibilityAll SPAC push-in fittings (A, E, Mini series)

Available Models & Variants

EA-Series

EA Nylon Tubes (Milky White)

Semi-rigid nylon tubing in milky white finish. Preferred for food processing, pharmaceutical, and clean environments where visual inspection of the tube interior is important. Available in 4x2.5mm through 12x9mm OD x ID.

EB-Series

EB Nylon Tubes (Blue/Black)

Industrial-grade nylon tubing in blue and black colours. Higher rigidity for long straight runs and outdoor use. Available in 4x2.5mm through 16x12mm OD x ID in 50m to 200m roll lengths.

Applications

The Nylon Tubes is used across a wide range of industrial applications:

  • Long straight pneumatic runs in factory main airlines
  • Chemical processing environments where PU tubing degrades
  • Outdoor pneumatic installations requiring UV and weather resistance
  • Food and beverage — milky white EA tubes for hygienic visibility
  • Oil and lubricant exposure areas where PU would swell
  • High-vibration environments benefiting from nylon's fatigue resistance

Industries Served

Chemical ProcessingFood & BeverageOutdoor & InfrastructureHeavy ManufacturingAutomotive Assembly

Why Buy From Shri Narayan Machinery LLP?

Choose nylon tubing over PU when your pneumatic system faces chemical exposure, long straight runs, or outdoor conditions. Nylon resists oils, solvents, and UV degradation far better than polyurethane. The EA Series milky white tubes meet hygiene visibility requirements for food and pharma, while EB Series blue/black tubes suit industrial colour-coding needs. Stocked at Shri Narayan Machinery in Noida.

Need Nylon Tubes? Get the Best Dealer Price

As an authorized SPAC Pneumatic dealer, Shri Narayan Machinery LLP offers competitive pricing on the entire Nylon Tubes range. Contact us for availability and your best quote.

Request Quote on WhatsAppCall +91-9811104037

C-101, Sector 9, Noida, Uttar Pradesh 201301 | SPAC Pneumatic Authorized Dealer

EA Series Nylon Tube Sizes

SPAC EA Series nylon tubes — milky white, available in 50m and 100m rolls.

Model / SizeItem CodeSize (OD x ID)Roll LengthColour
EA0425-100M4 x 2.5mm100mMilky White
EA0640-100M6 x 4.0mm100mMilky White
EA0860-100M8 x 6.0mm100mMilky White
EA1080-100M10 x 8.0mm100mMilky White
EA1290-50M12 x 9.0mm50mMilky White

* Prices available on request — contact Shri Narayan Machinery

EB Series Nylon Tube Sizes

SPAC EB Series nylon tubes — blue/black, available in 50m to 200m rolls.

Model / SizeItem CodeSize (OD x ID)Roll LengthColours
EB0425-200M4 x 2.5mm200mBlue, Black
EB0640-100M6 x 4.0mm100mBlue, Black
EB0850-100M8 x 5.0mm100mBlue, Black
EB0855-100M8 x 5.5mm100mBlue, Black
EB0860-100M8 x 6.0mm100mBlue, Black
EB1065-100M10 x 6.5mm100mBlue, Black
EB1080-100M10 x 8.0mm100mBlue, Black
EB1280-100M12 x 8.0mm100mBlue, Black
EB1410-50M14 x 10mm50mBlue, Black
EB1612-50M16 x 12mm50mBlue, Black

* Prices available on demand — request a quote

* GST, packaging & forwarding extra as applicable

Need a specific size or model? Call +91-9811104037 or WhatsApp us for availability and best dealer pricing.

Frequently Asked Questions — Nylon Tubes

Use nylon tubes when your pneumatic lines face chemical exposure (oils, solvents, cleaning agents), long straight runs where PU would sag, outdoor installations, or environments above 50°C where PU softens. For short flexible connections to moving cylinders, PU is better due to its flexibility. Many systems use both — nylon for main airlines and PU for the final connections to moving components.

Need This Product? Get a Quote Now.

Call or WhatsApp us with the model number — we'll check availability and give you the best price. Bulk orders welcome.

Call +91-9811104037WhatsApp Us
